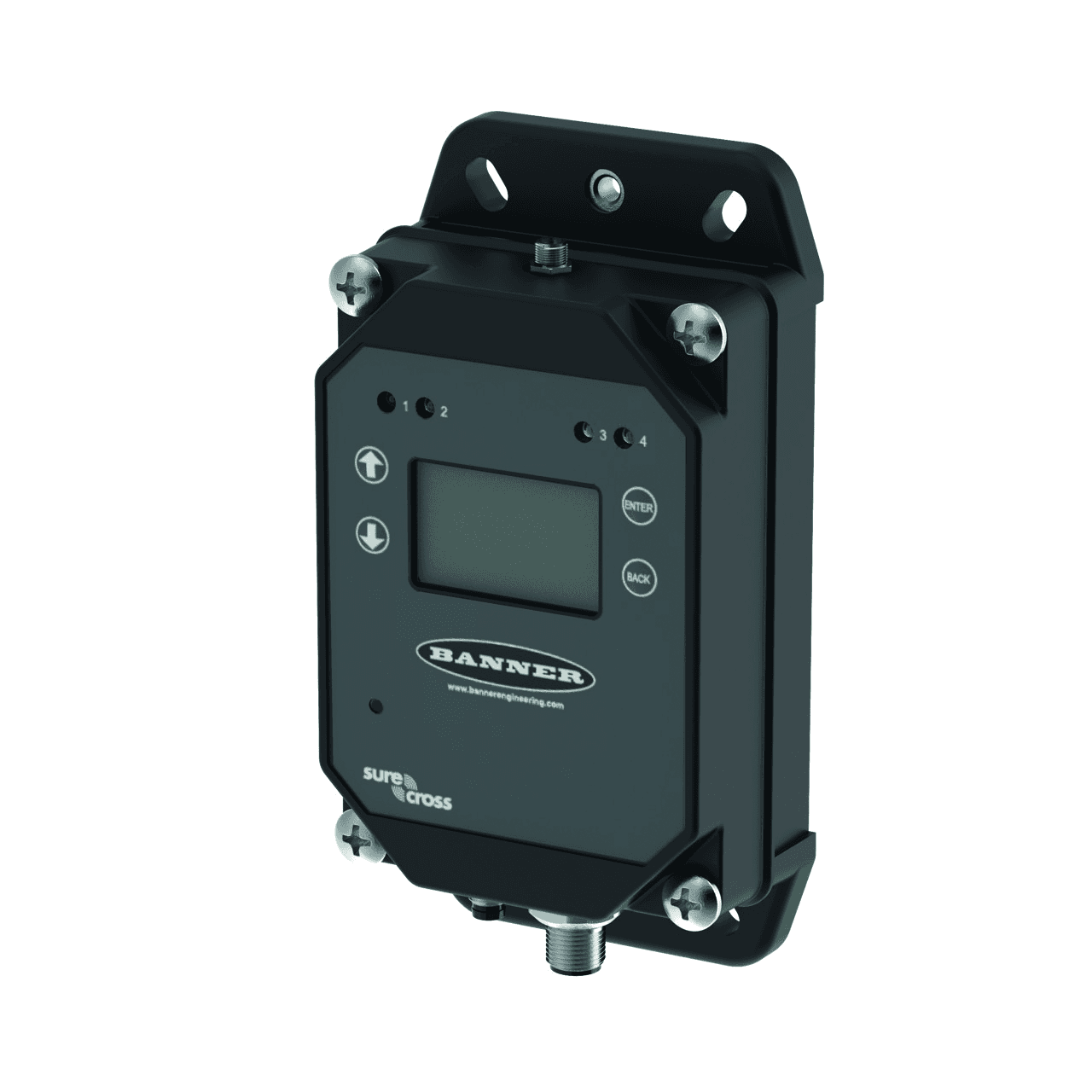

Network Controller

DXM1200-B1R4

Order ID no. 3805551

Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -20
Antenna connection: RP-SMA female connector
Runs with battery: No
Communication protocol: EtherNet/IP, Modbus TCP, Modbus RTU, PROFINET, RS485
Electrical connection: Connector
Connector type: M12 x 1
Design: Rectangular

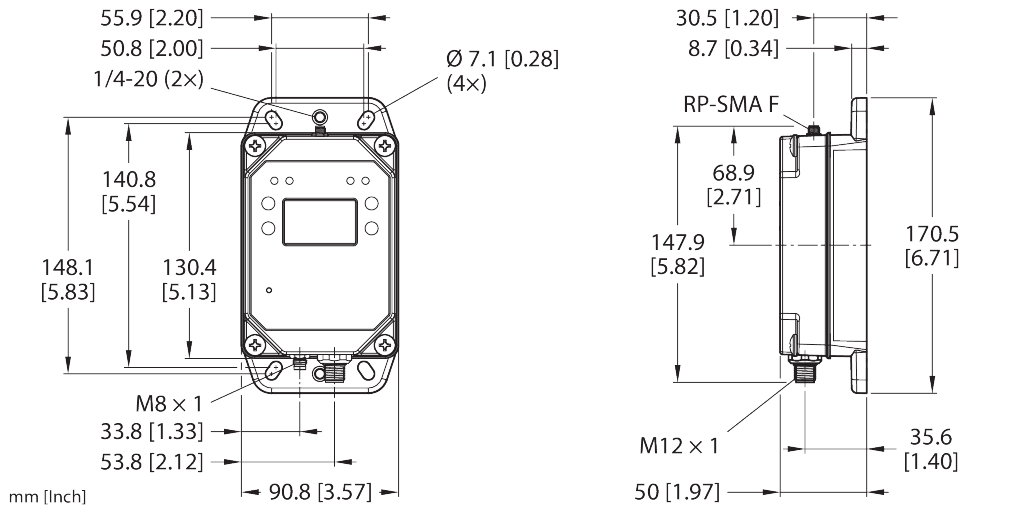

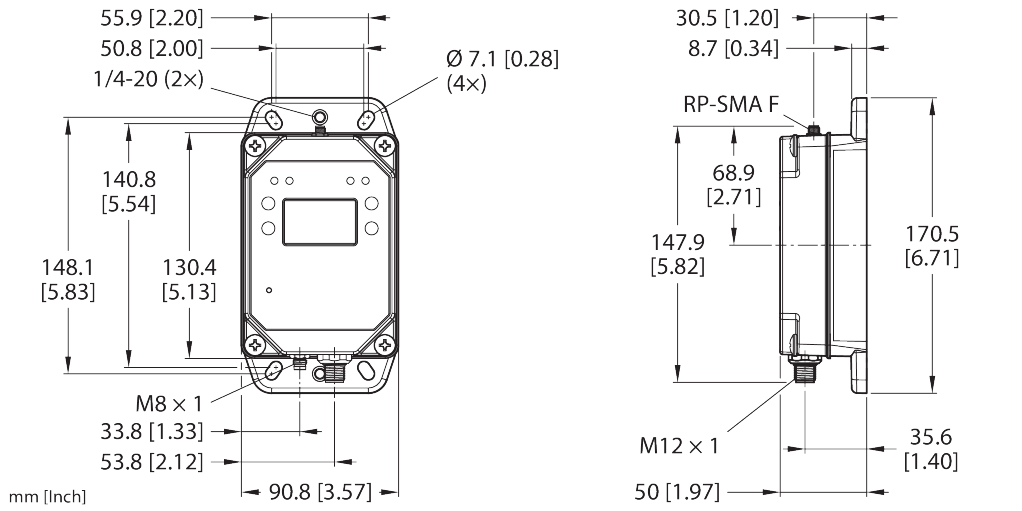

Dimensions (L x W x H): 50,9 mm x 90,8 mm x 170,5 mm
Frequency band: 2.4-GHz ISM band
Frequency range: 2.402 - 2.483 GHz
Housing material: Plastic
Housing quality: PC
Function: Tree topology
Operating voltage: DC
Output function: PNP/NPN, analog output
Protection class: IP67
Max. range (mm): 3200000
Switching element function: Programmable

Communication protocol: EtherNet/IP, Modbus TCP, Modbus RTU, PROFINET, RS485
Function: Tree topology
