Isolating switching amplifier

IMX18-DI03-4S-5R-S/24VDC/CC

Order ID no. 100028615

In Stock
Price Group	D3
List Price	€283.60

Item Total€283.60

Quantity

Contact Support

homeTurck-Shop
Products
Interface Technology
Safety Barriers
IMX18-DI03-4S-5R-S/24VDC/CC

Protection class: IP20
Approvals: ATEX
Electrical connection: Removable spring-type terminals, 3-pin
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Power supply: 24 VDC
Number of channels: 4
Ex version: yes
Signal type: Digital input
Nominal voltage: 24 VDC
Approvals: ATEX
Digital output: Relay output
Functional safety (SIL/PL): SIL2

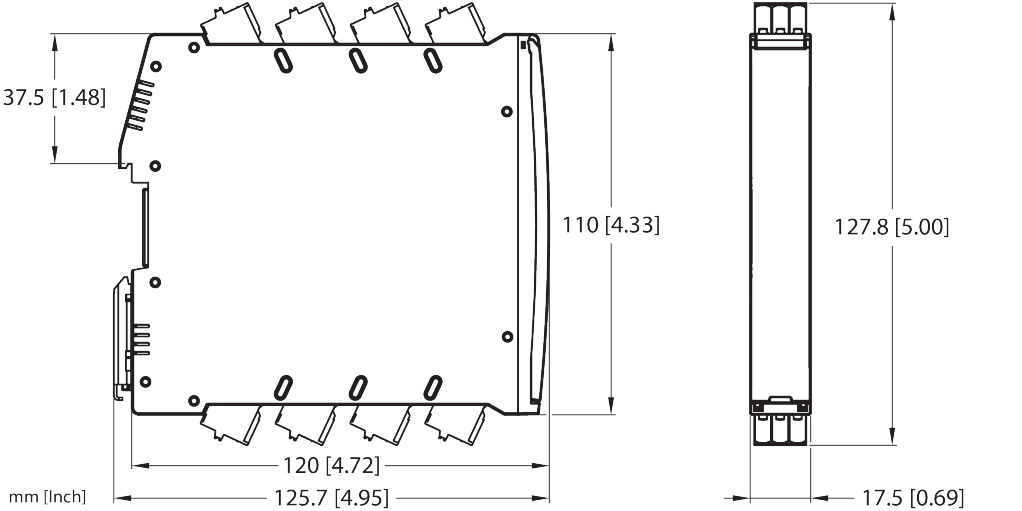

Dimensions: 120 mm x 17,5 mm x 128 mm

Key Features

Approvals: ATEX
Number of channels: 4
Signal type: Digital input
Nominal voltage: 24 VDC
