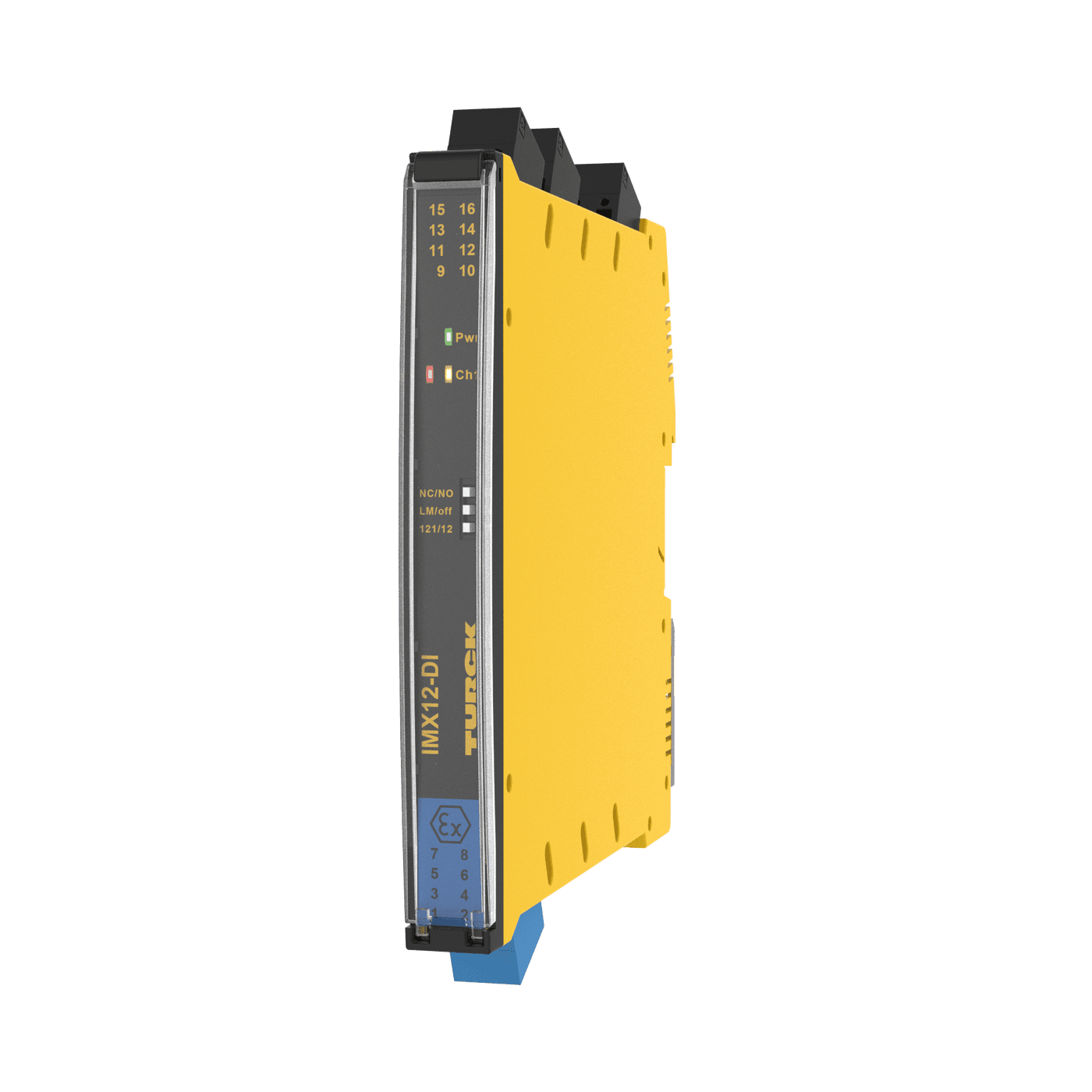

Isolating switching amplifier
IMX12-DI03-1S-2T-S/24VDC/CC
Order ID no. 7580014
In Stock
Price Group
D3
List Price
€151.20
Item Total
€151.20
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Interface Technology
Safety Barriers
IMX12-DI03-1S-2T-S/24VDC/CC
Technical Data
Downloads
Functional safety (SIL/PL)
SIL2
Signal type
Digital input
Nominal voltage
24 VDC
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
ATEX, IECEx, NEPSI, KOSHA, TR CU
Number of channels
1
Electrical connection
Removable spring-type terminals, 2-pin
Dimensions (L x W x H)
120 mm x 12,5 mm x 128 mm
Ex version
yes
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Digital output
Transistor output
Power supply
24 VDC
Protection class
IP20
Key Features
Number of channels
1
Signal type
Digital input
Nominal voltage
24 VDC
