IMX12-DI01-2S-2T-PR/24VDC | TURCK - Your Global Automation Partner

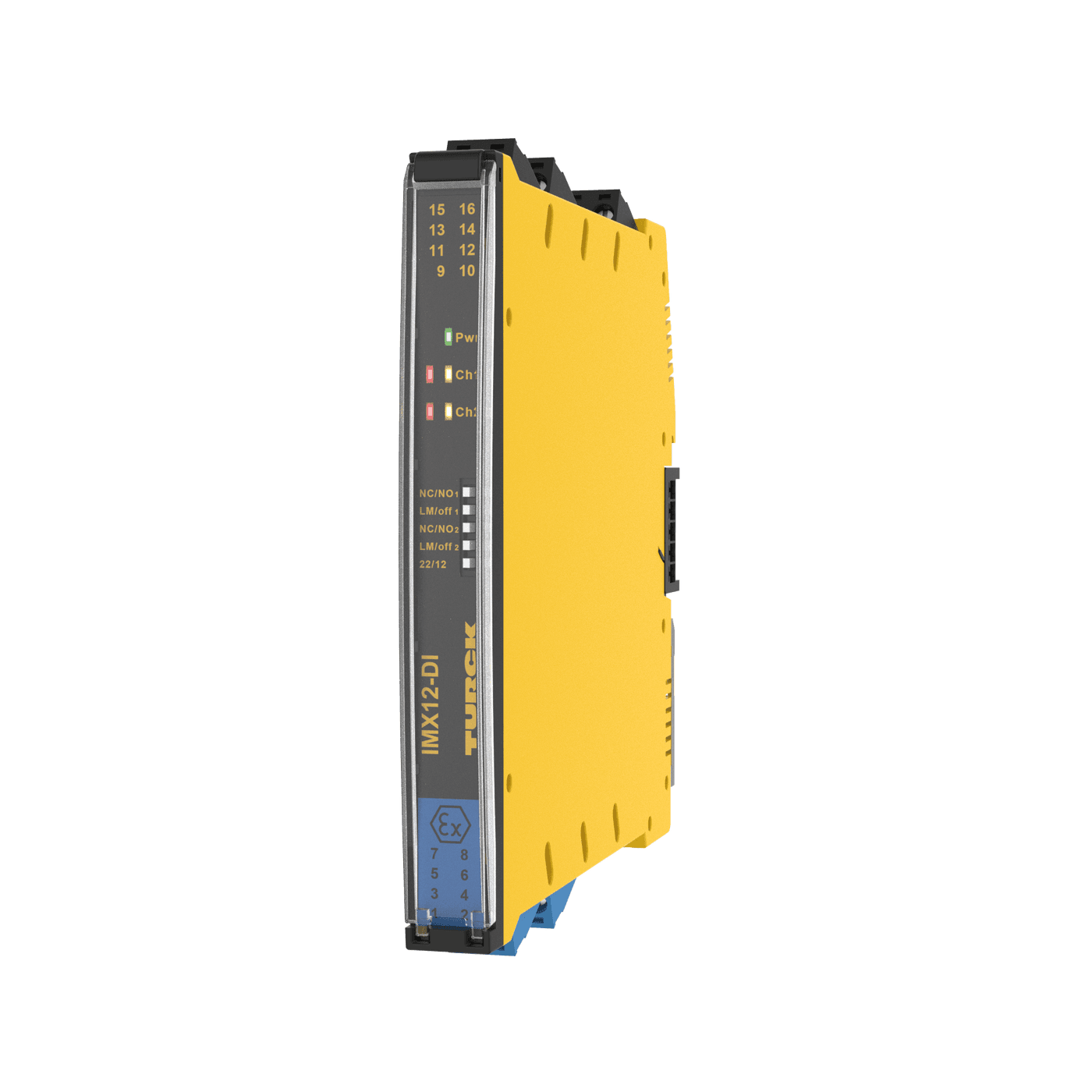

Isolating switching amplifier
IMX12-DI01-2S-2T-PR/24VDC
Order ID no. 7580021
home
Home
Loading...
Technical Data
Downloads
Protection class
IP20
Approvals
ATEX, IECEx, cULus, NEPSI, INMETRO, KOSHA, TIIS, TR CU, DNV GL
Electrical connection
Removable screw terminals, 2-pin
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Power supply
24 VDC
Number of channels
2
Ex version
yes
Signal type
Digital input
Nominal voltage
Power bridge 24 VDC
Approvals
ATEX
Digital output
Transistor output
Functional safety (SIL/PL)
SIL2
Dimensions
120 mm x 12,5 mm x 117 mm
Connection variant
Power bridge with collective fault signal
Key Features
Approvals
ATEX
Number of channels
2
Signal type
Digital input
Nominal voltage
Power bridge 24 VDC
In Stock
Price Group
D3
List Price
€171.80
Item Total
€171.80
