IM12-DI01-2S-2PP-PR/24VDC | TURCK - Your Global Automation Partner

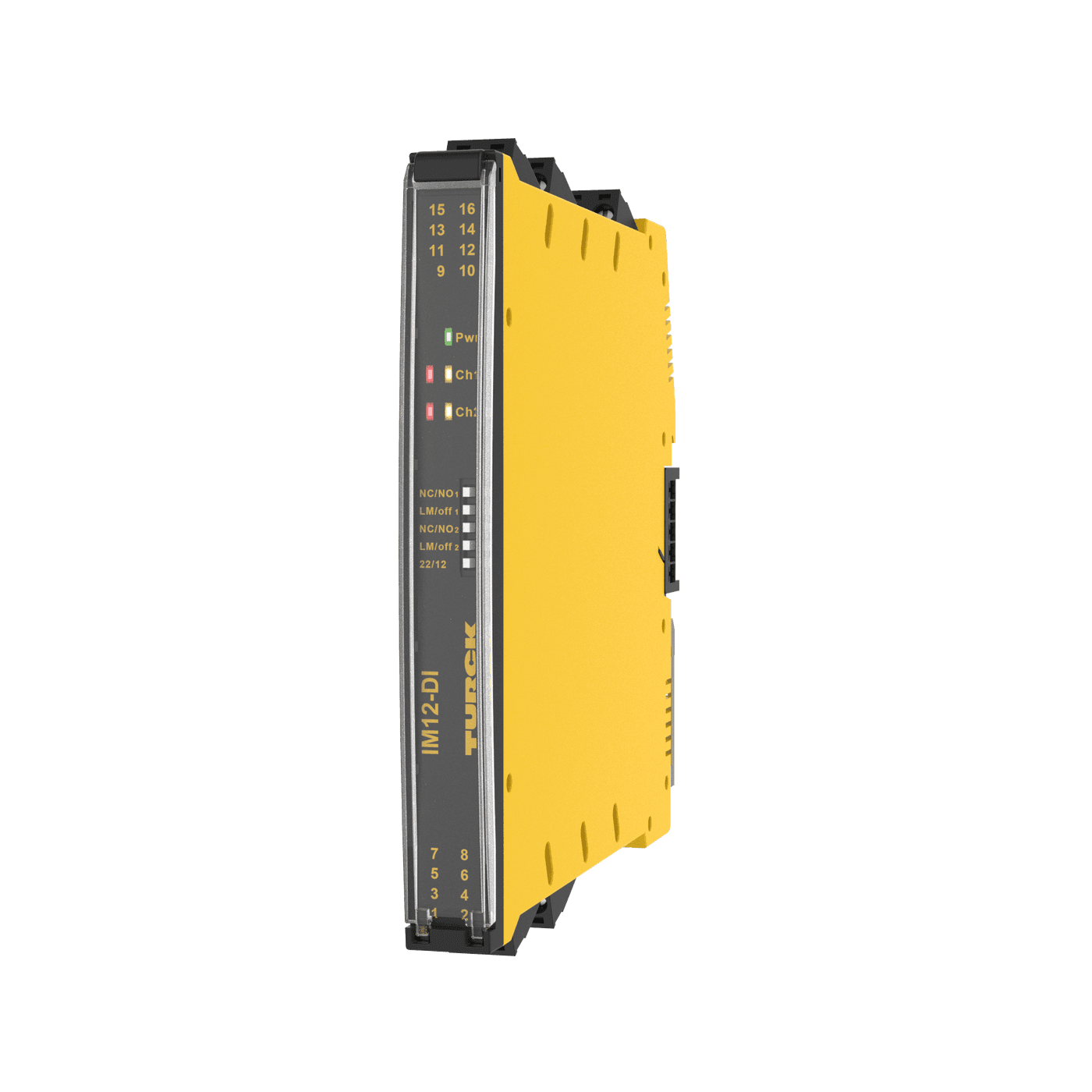

Isolating switching amplifier

IM12-DI01-2S-2PP-PR/24VDC

Order ID no. 7580045

homeHome
Loading...

Protection class: IP20
Approvals: ATEX
Electrical connection: Removable screw terminals, 2-pin
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Power supply: 24 VDC
Number of channels: 2
Ex version: no
Signal type: Digital input
Nominal voltage: Power bridge 24 VDC
Approvals: cULus
Digital output: Push-pull output
Functional safety (SIL/PL): SIL2
Dimensions: 120 mm x 12,5 mm x 117 mm
Connection variant: Power bridge with collective fault signal

Key Features

Approvals: cULus
Number of channels: 2
Signal type: Digital input
Nominal voltage: Power bridge 24 VDC

In Stock
Price Group	D3
List Price	€148.60
