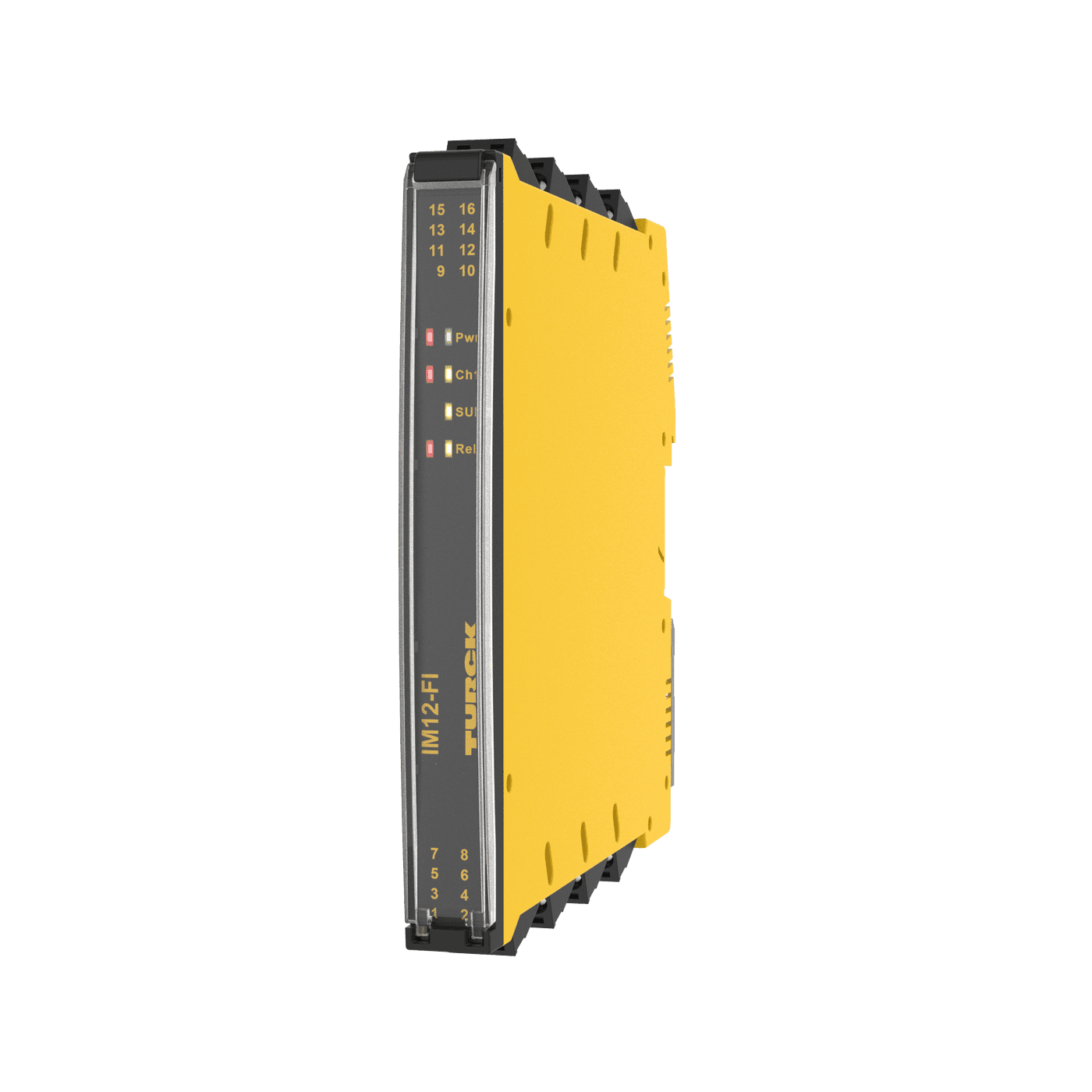

Frequency Transducer/Pulse Counter
IM12-FI01-1SF-1R-0/24VDC
Order ID no. 7580221
In Stock
Price Group
D3
List Price
€300.50
Item Total
€300.50
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Interface Technology
Safety Barriers
IM12-FI01-1SF-1R-0/24VDC
Technical Data
Downloads
Functional safety (SIL/PL)
SIL2
Signal type
Frequency input
Nominal voltage
24 VDC
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
ATEX, cULus
Number of channels
1
Electrical connection
Removable screw terminals, 2-pin
Dimensions (L x W x H)
120 mm x 12,5 mm x 117 mm
Ex version
no
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Digital output
Relay output
Power supply
24 VDC
Protection class
IP20
Key Features
Number of channels
1
Signal type
Frequency input
Nominal voltage
24 VDC
