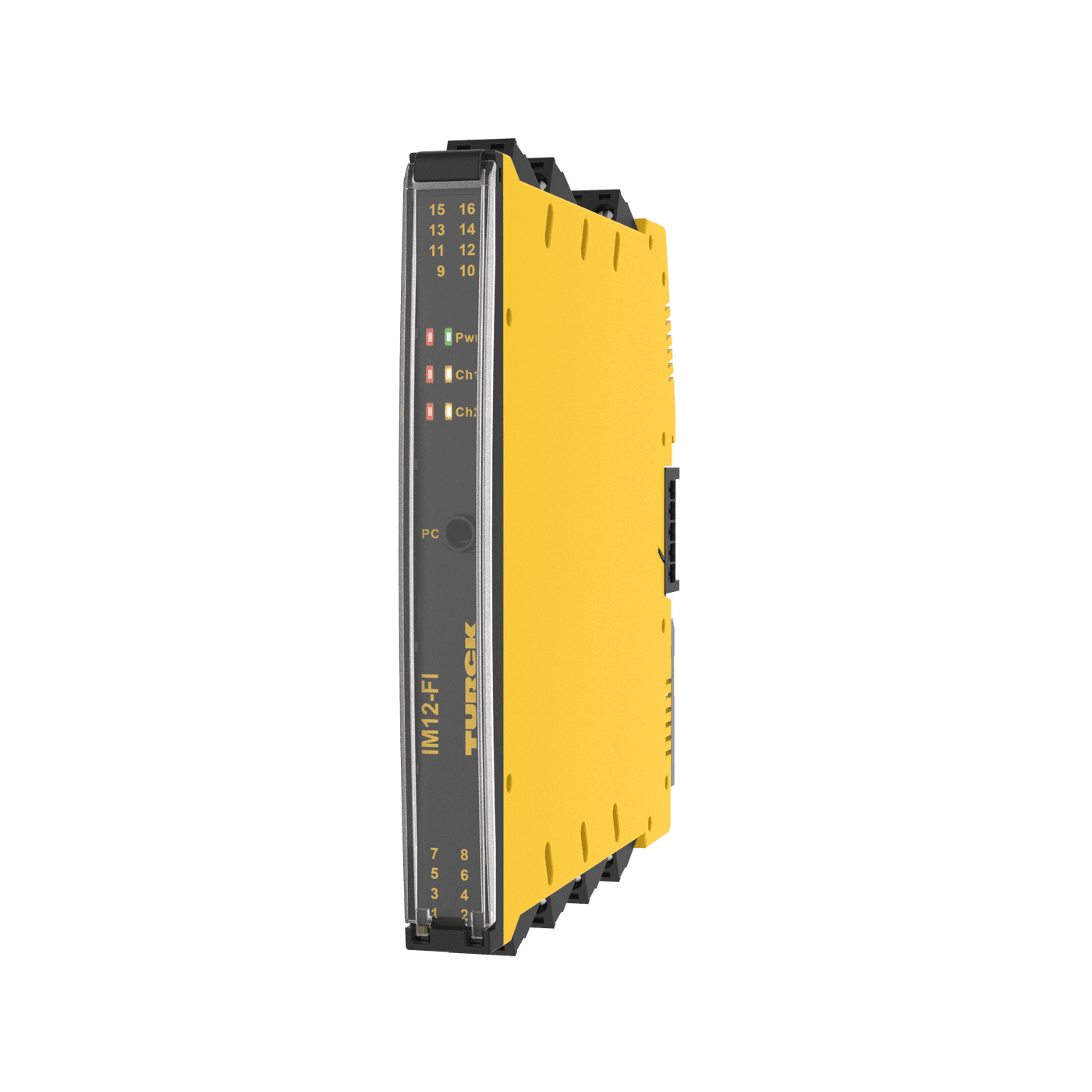

IM12-FI01-2SF-2I-CPR/24VDC | TURCK - Your Global Automation Partner
Frequency Transducer/Pulse Counter
IM12-FI01-2SF-2I-CPR/24VDC
Order ID no. 7580228
home
Home
Loading...
Technical Data
Downloads
Protection class
IP20
Approvals
ATEX
Electrical connection
Removable screw terminals, 2-pin
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Power supply
24 VDC
Number of channels
2
Ex version
no
Signal type
Frequency input
Nominal voltage
Power bridge 24 VDC
Approvals
cULus
Functional safety (SIL/PL)
SIL2
Current output
In mA
Dimensions
120 mm x 12,5 mm x 117 mm
Connection variant
Power bridge with collective fault signal
Key Features
Approvals
cULus
Number of channels
2
Signal type
Frequency input
Nominal voltage
Power bridge 24 VDC
In Stock
Price Group
D3
List Price
€345.10
