Level controller

MS91-12-R

Order ID no. 5220110

Signal type: Resistance input
Nominal voltage: Wide voltage range
Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -25
Approvals: GOST
Number of channels: 1
Electrical connection: 2 x 8-pin removable terminal blocks, reverse polarity protected, screw terminal

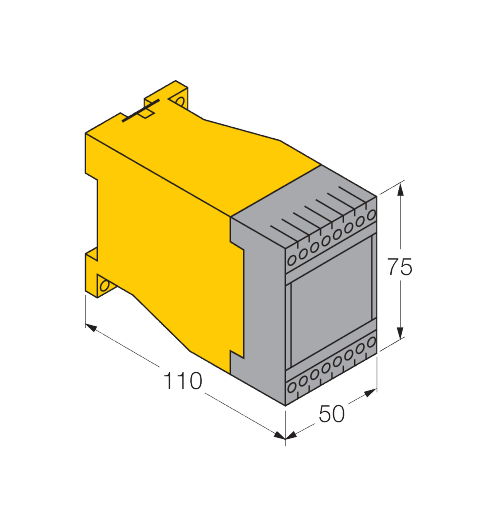

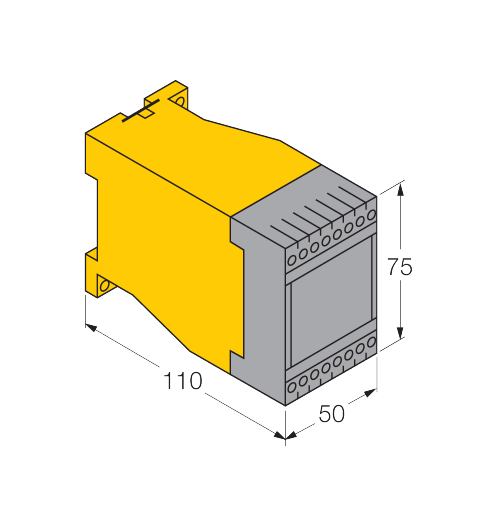

Dimensions (L x W x H): 75 mm x 50 mm x 110 mm
Ex version: no
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Digital output: Relay output
Output function: Min./Max. two-point control
Power supply: 230 VUC
Protection class: IP20
