Trip amplifier

IM43-13-R

Order ID no. 7540040

Item Total€250.50

Quantity

Signal type: Analog input
Nominal voltage: Wide voltage range
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: cFMus, TR CU, Metrological Approval Russia
Number of channels: 1
Electrical connection: 4 x 5-pin removable terminal blocks, reverse polarity protected, screw terminal

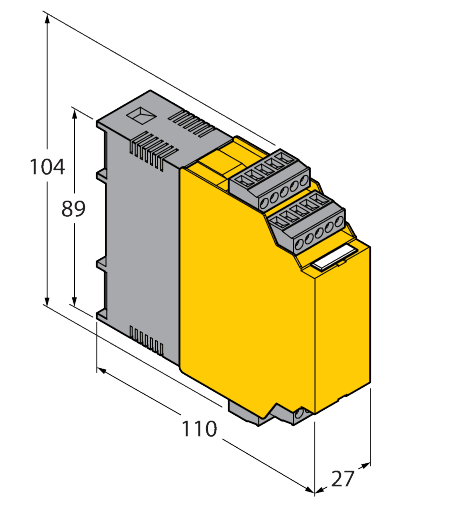

Dimensions (L x W x H): 104 mm x 27 mm x 110 mm
Ex version: no
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Digital output: Relay output
Power supply: widerange
Protection class: IP20
