Level controller

MK91-12-R/230VAC

Order ID no. 7545070

Signal type: Resistance input
Nominal voltage: 230 VAC
Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -25
Approvals: GOST
Number of channels: 1
Electrical connection: 4 x 4-pin flat terminals with self-lifting pressure plates

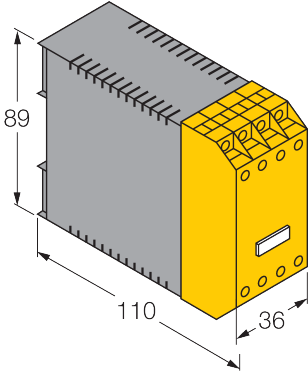

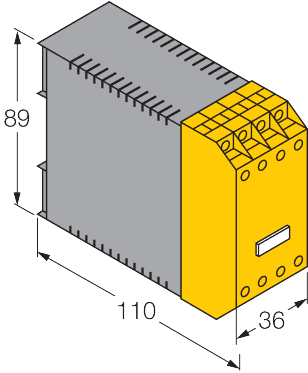

Dimensions (L x W x H): 89 mm x 36 mm x 110 mm
Ex version: no
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Digital output: Relay output
Output function: Min./Max. two-point control
Power supply: 230 VAC
Protection class: IP20
