PVL225NQ | TURCK - Your Global Automation Partner
Pick-to-Light
PVL225NQ
Order ID no. 3026208
home
Home
Loading...
Technical Data
Downloads
Protection class
IP50
Switching element function
NO contact
Output function
NPN
Cable length (m)
2
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
Anodized AL
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
50
Max. range (mm)
1500
Function
Retroreflective Sensor
Operating voltage
DC
Input type
minus‐schaltend
Scan field (mm)
225
Optical resolution (mm)
70
Light type
Red
Construction size
327.5 x 31 x 37.3 mm
Number of colors/segments
2
Number of beams
4

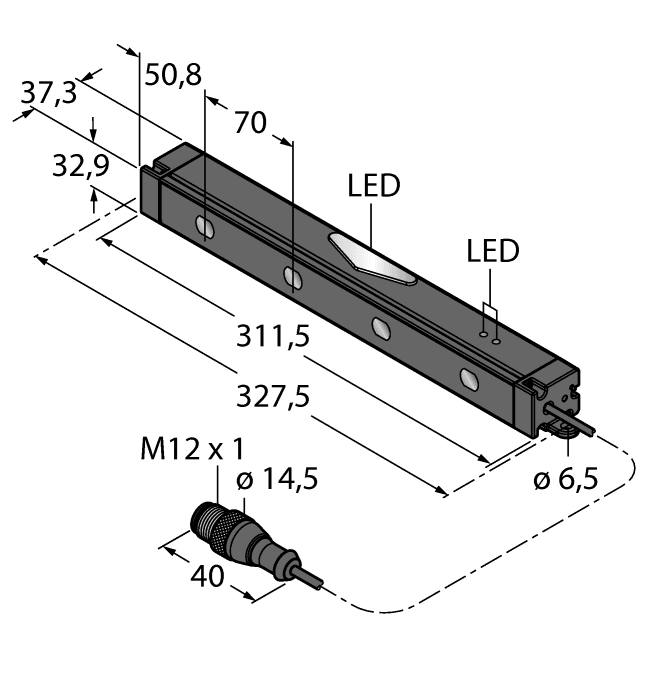

Dimensions
327,5 mm x 31 mm x 37,3 mm
Operating mode
Unpolarized
Wavelength (nm)
630
Key Features
Scan field (mm)
225
Light type
Red
Number of colors/segments
2
Output function
NPN
In Stock
Price Group
F3
List Price
€384.50
