PVL500N | TURCK - Your Global Automation Partner
Pick-to-Light
PVL500N
Order ID no. 3032570
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-40
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular
Scan field (mm)
500

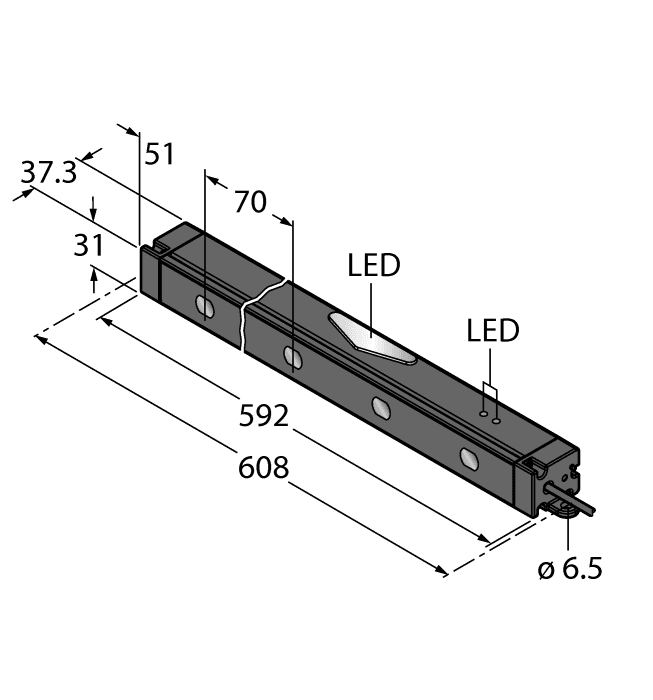

Dimensions (L x W x H)
608 mm x 31 mm x 37,3 mm
Housing material
Metal
Housing quality
Anodized AL
Input type
minus‐schaltend
Light type
Red
Number of beams
8
Number of colors/segments
2
Function
Retroreflective Sensor
Operating mode
Unpolarized
Operating voltage
DC
Optical resolution (mm)
70
Output function
NPN
Protection class
IP50
Max. range (mm)
1500
Switching element function
NO contact
Wavelength (nm)
630
Key Features
Scan field (mm)
500
Light type
Red
Number of colors/segments
2
Output function
NPN
In Stock
Price Group
F3
List Price
€570.00
