PVA300P6RQ | TURCK - Your Global Automation Partner
Pick-to-Light
PVA300P6RQ
Order ID no. 3051919
home
Home
Loading...
Technical Data
Downloads
Protection class
IP62
Switching element function
NO/NC
Output function
PNP
Cable length (m)
2
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
AL
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
50
Max. range (mm)
2000
Function
Opposed mode sensor
Operating voltage
DC
Input type
Bipolar (PNP/NPN)22
Scan field (mm)
300
Optical resolution (mm)
25
Number of colors/segments
1
Number of beams
13

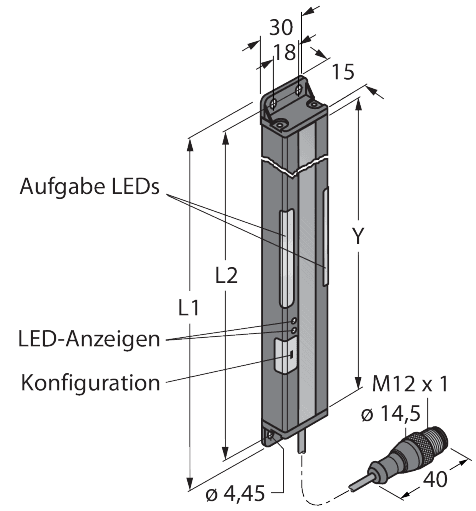

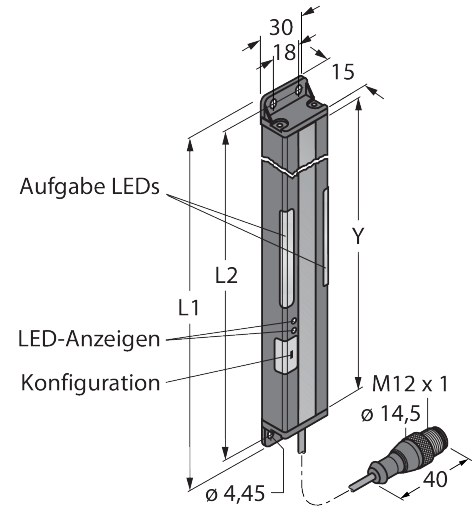

Dimensions
341,4 mm x 30 mm x 15 mm
Operating mode
Receiver
Key Features
Scan field (mm)
300
Number of colors/segments
1
Output function
PNP
In Stock
Price Group
F3
List Price
€605.00
