PVD225Q | TURCK - Your Global Automation Partner

Pick-to-Light

PVD225Q

Order ID no. 3070991

homeHome
Loading...

Protection class: IP62
Switching element function: NO/NC
Output function: PNP/NPN
Cable length (m): 2
Design: Rectangular
Electrical connection: Cable with connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: AL
Ambient temperature min. (°C): 0
Ambient temperature max. (°C): 50
Max. range (mm): 400
Function: Retroreflective sensor or proximity switch
Operating voltage: DC
Input type: Bipolar (PNP/NPN)
Scan field (mm): 225
Optical resolution (mm): 28.6
Light type: Red
Number of colors/segments: 2
Number of beams: 8

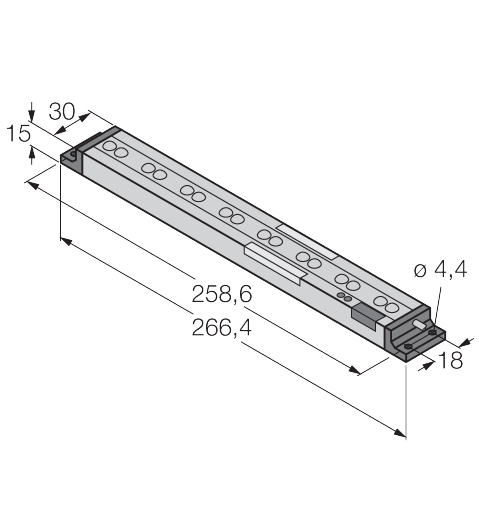

Dimensions: 266,4 mm x 30 mm x 15 mm
Wavelength (nm): 630

Key Features

Scan field (mm): 225
Light type: Red
Number of colors/segments: 2

Output function

PNP/NPN

In Stock
Price Group	F3
List Price	€580.00

homeTurck-Shop
Products
Lighting and Indicators
Pick-to-Light
PVD225Q

Item Total€580.00

Quantity
