Pick-to-Light
K50APFF100GREQP
Order ID no. 3075376
In Stock
Price Group
F3
List Price
€171.10
Item Total
€171.10
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Lighting and Indicators
Pick-to-Light
K50APFF100GREQP
Technical Data
Downloads
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Cable length (m)
0.15
Design
Dome
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PC
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
50
Max. range (mm)
100
Function
Diffuse mode sensor with fixed-field background suppression
Operating voltage
DC
Input type
PNP
Light type
IR
Number of colors/segments
2
Number of beams
1
Special features
I/O module-compatible, Wash down

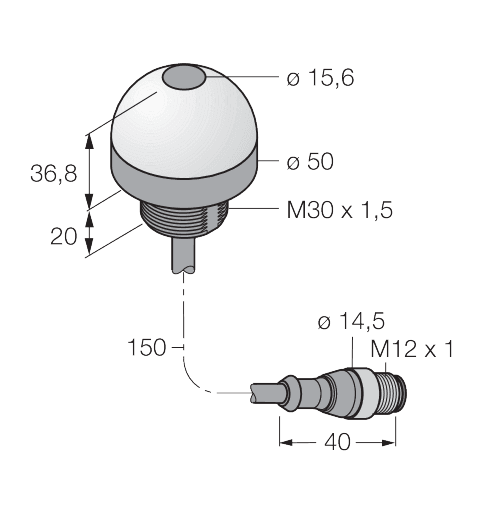

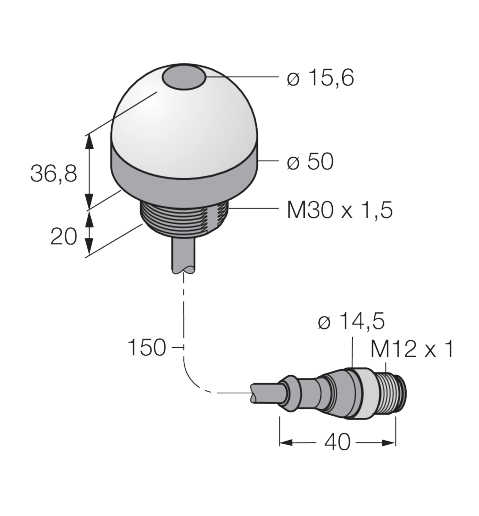

Dimensions
50 mm x x 56,8 mm
Wavelength (nm)
880
Key Features
Light type
IR
Number of colors/segments
2
Output function
PNP
