PVS28D225QP | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Pick-to-Light

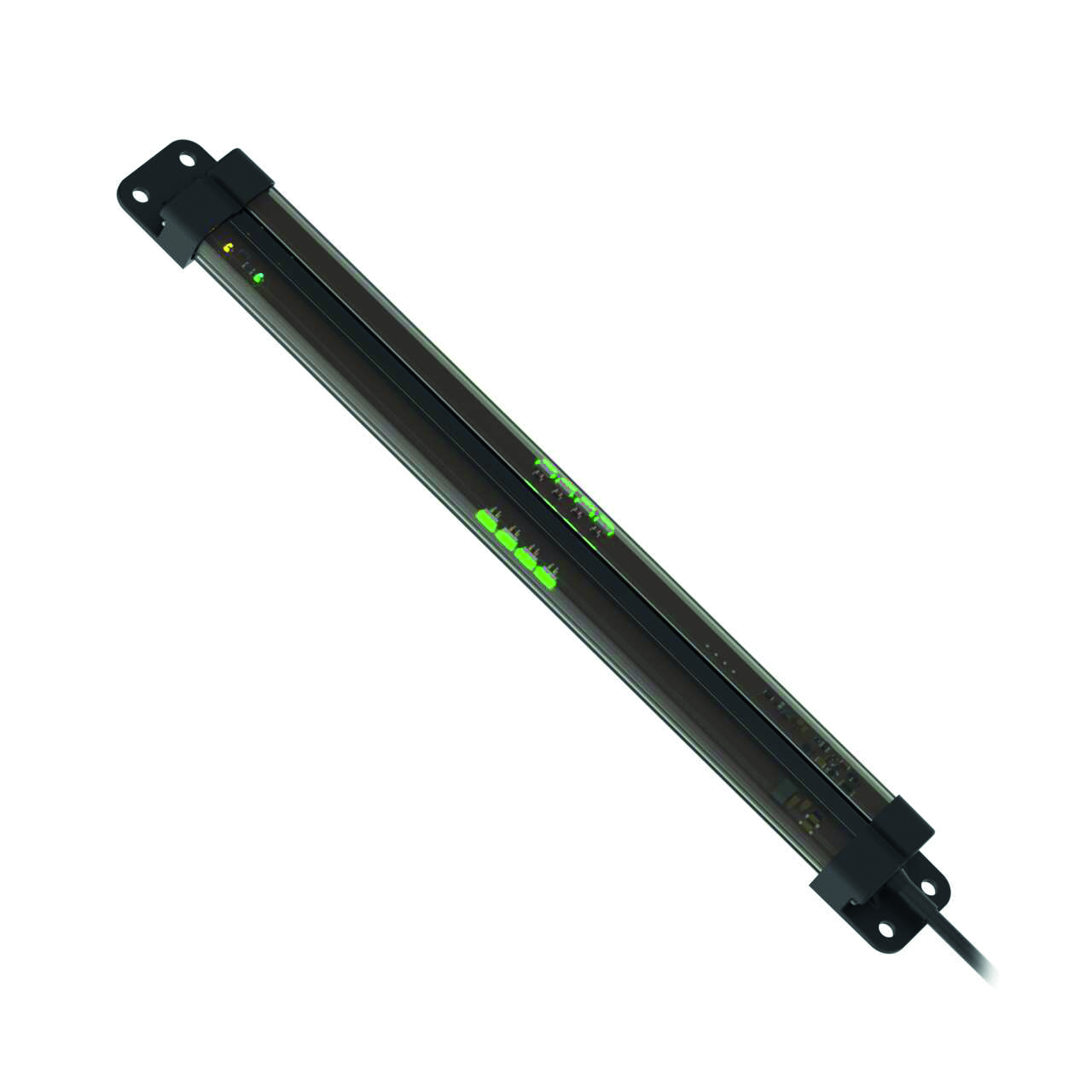

PVS28D225QP
Order ID no. 3814558
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-20
Electrical connection
Cable with connector
Connector type
M12 × 1
Design
Rectangular
Scan field (mm)
225

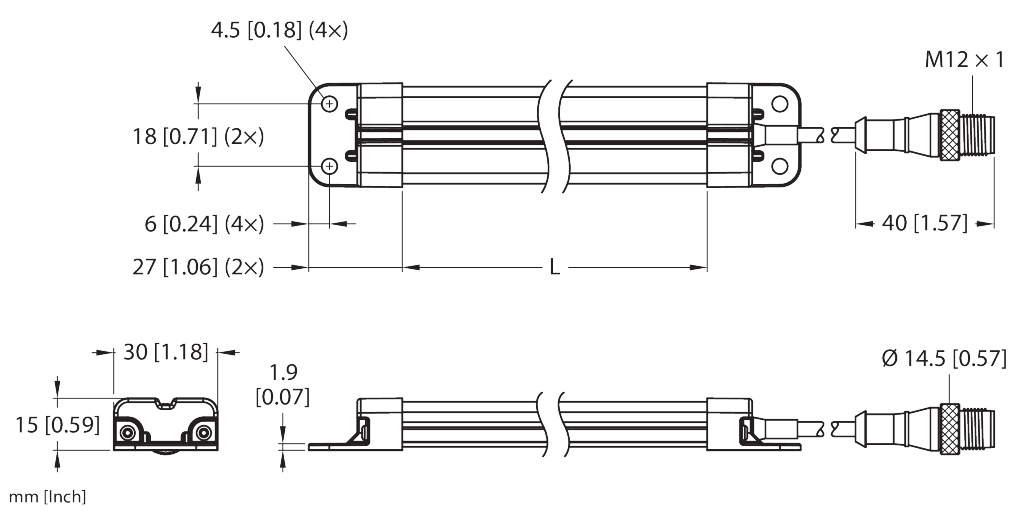

Dimensions (L x W x H)
15 mm x 28 mm x 270,6 mm
Housing material
Plastic
Housing quality
PC, ABS
Light type
IR
Function
Light screen
Operating voltage
DC
Output function
PNP/NPN
Protection class
IP54
Max. range (mm)
1000
Switching element function
NO/NC
Wavelength (nm)
940
home
Turck-Shop
Products
Lighting and Indicators
Pick-to-Light
PVS28D225QP
Key Features
Scan field (mm)
225
Light type
IR
Output function
PNP/NPN
In Stock
Price Group
F3
List Price
€502.50
Item Total
€502.50
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
