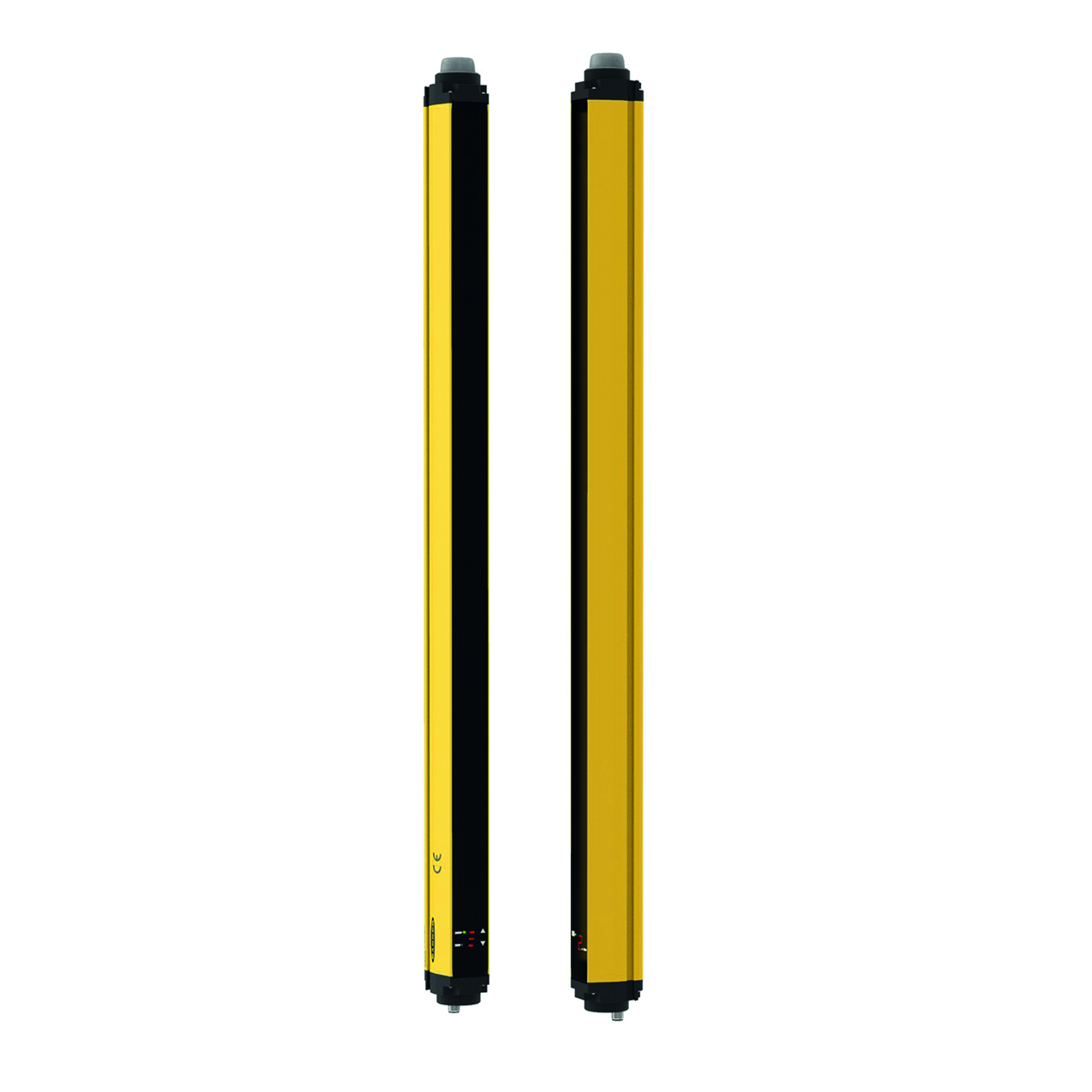

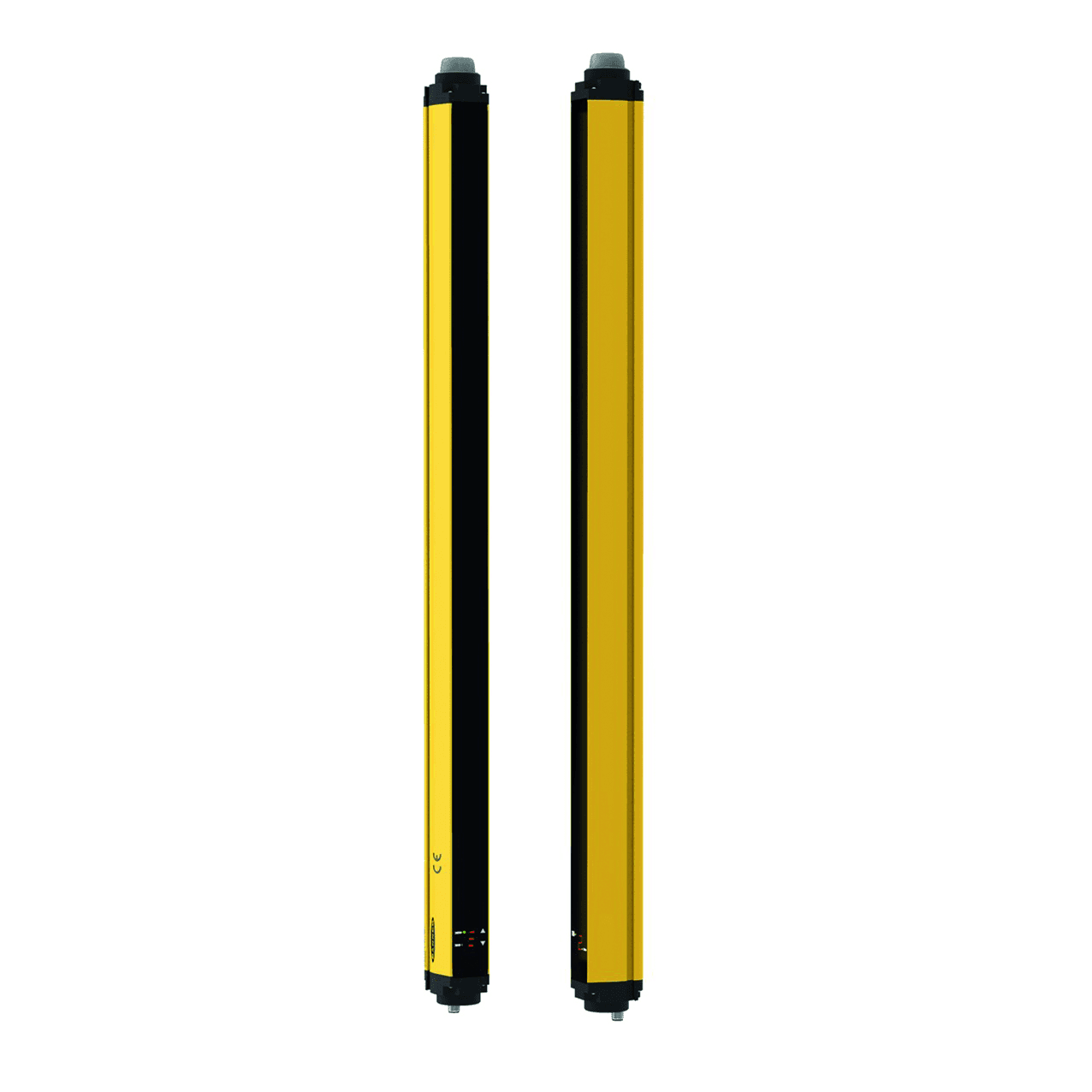

Safety Light Curtain
SGSXP3-400Q88
Order ID no. 3803222
In Stock
Price Group
G1
List Price
€1,767.00
Item Total
€1,767.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Machine Safety
Safety Grid Systems
SGSXP3-400Q88
Technical Data
Downloads
Protection class
IP65
Switching element function
2 x OSSD, NO contact
Output function
PNP
Design
Rectangular
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
AL
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
55
Max. range (mm)
60000
Function
Light screen
Scan field (mm)
800
Optical resolution (mm)
400
Light type
IR
With muting function
No
Number of beams
3
Dimensions
56,9 mm x 52 mm x 906,35 mm
PL acc. to EN ISO 13849-1
Level e
SIL acc. to IEC 61508
3
Category acc. to ISO 13849-1:2008
4
Wavelength (nm)
950
Key Features
Scan field (mm)
800
Number of beams
3
Optical resolution (mm)
400
Max. range (mm)
60000
