SLLR14-1610P8 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Safety Light Curtain
SLLR14-1610P8
Order ID no. 3089018
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cable length (m)
0.3
Cascadable
No
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular
Scan field (mm)
1610

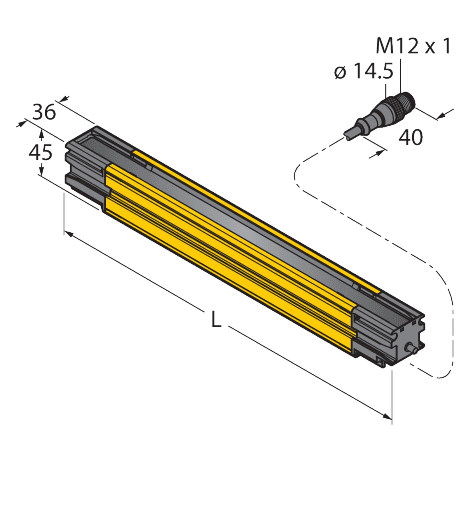

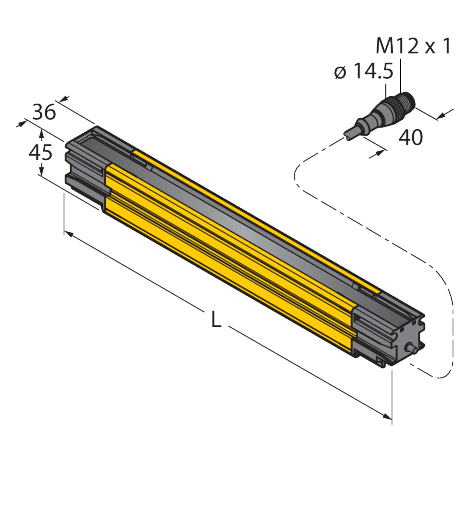

Dimensions (L x W x H)
45 mm x 36 mm x 1615 mm
Housing material
Metal
Housing quality
AL
Light type
IR
Start/Restart interlock
no
Number of beams
184
Function
Light screen
Optical resolution (mm)
14
Output function
2 × PNP
Protection class
IP65, IP67
Max. range (mm)
12000
Switching element function
2 x NO contact
With muting function
No
Key Features
Cascadable
No
home
Turck-Shop
Products
Machine Safety
Safety Light Curtains
SLLR14-1610P8
Scan field (mm)
1610
Number of beams
184
Optical resolution (mm)
14
In Stock
Price Group
G1
List Price
€2,848.00
Item Total
€2,848.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
