SLC4P14-320P44 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

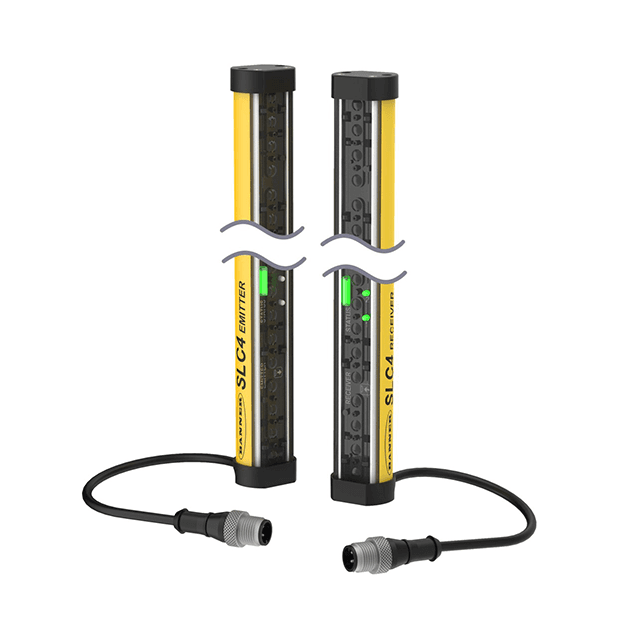

Safety Light Curtain
SLC4P14-320P44
Order ID no. 3806330
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Approvals
CE, cULus
Cable length (m)
0.3
Cascadable
No
Coding level/tamper protection
Uncoded
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular
Scan field (mm)
320

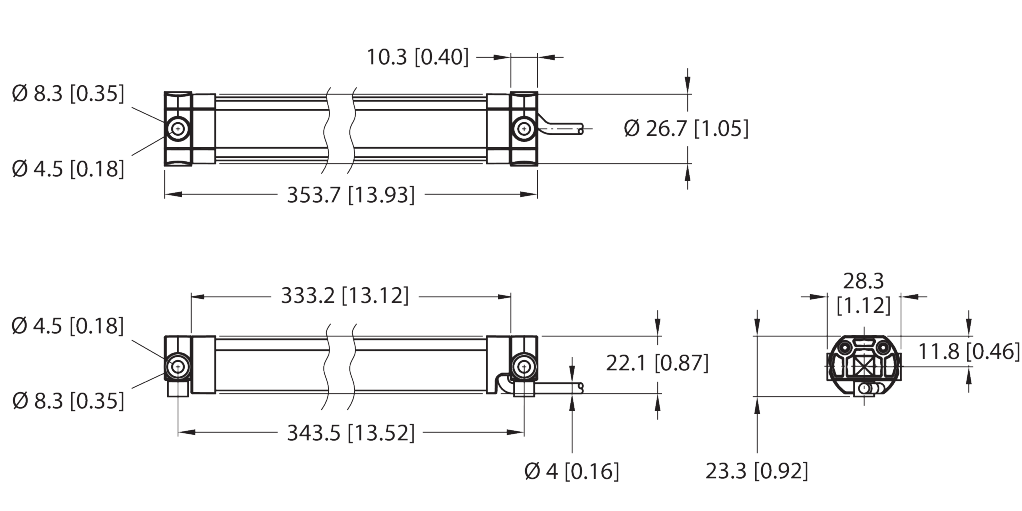

Dimensions (L x W x H)
22,1 mm x 26,7 mm x 333 mm
Housing material
Plastic
Housing quality
PC
Light type
IR
Start/Restart interlock
no
Function
Light screen
Optical resolution (mm)
14
Output function
2 × PNP
Protection class
IP65
Max. range (mm)
2000
PL acc. to EN ISO 13849-1
Level e
SIL acc. to IEC 61508
3
Category acc. to ISO 13849-1:2008
4
Switching element function
NC contact
Wavelength (nm)
860
With muting function
No
Key Features
home
Turck-Shop
Products
Machine Safety
Safety Light Curtains
SLC4P14-320P44
Cascadable
No
Scan field (mm)
320
Optical resolution (mm)
14
In Stock
Price Group
F3
List Price
€1,176.00
Item Total
€1,176.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
