Safety Module

IM-T-9A

Order ID no. 3061425

Ambient temperature max. (°C): 50
Ambient temperature min. (°C): 0
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Design: Terminal chamber

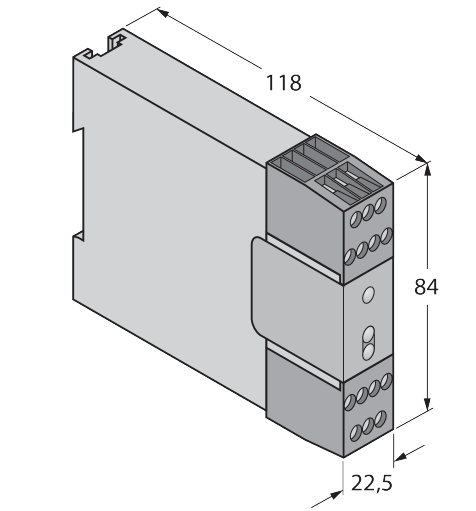

Dimensions (L x W x H): 118 mm x 22,5 mm x 84 mm
Housing material: Plastic
Housing quality: PC
Function: Safety relay
Operating voltage: DC
Output function: Relay output
Protection class: IP20
Switching element function: NO contact
