Capacitive Sensor

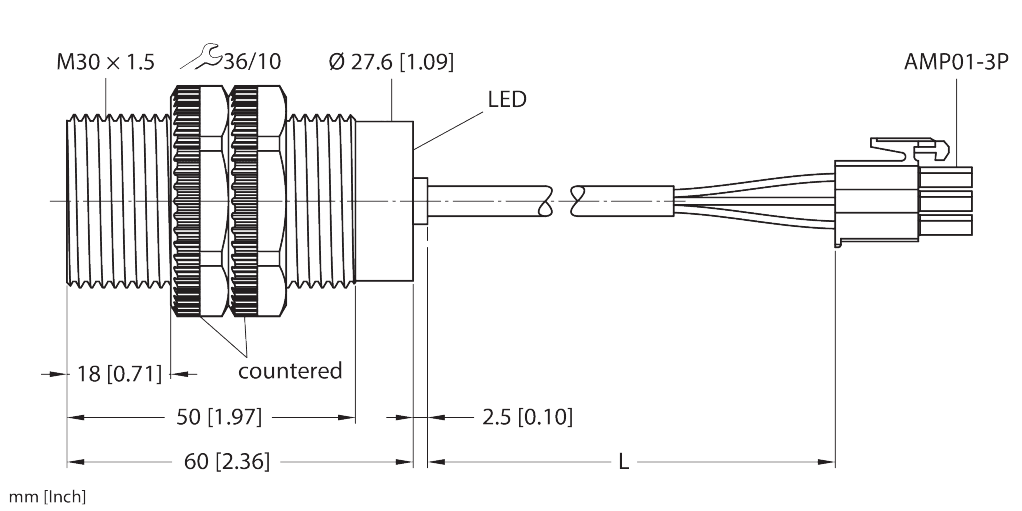

BCF7.7-S30-AP4X-0.42-AMP01-3P/S1376

Order ID no. 100024513

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable length (m): 0.42
Connector type: AMP01-3-P
Design: Threaded barrel
Dimensions (L x W x H): 60 mm
Electrical connection: Cable with connector
Function: For highly viscous media
Housing material: Plastic
Housing quality: PA12-GF30, PEI
Measuring principle: Capacitive
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 7.7
Special features: Improved background suppression, Increased EMC protection, Suited for highly viscous media
Switching element function: NO contact
Switching frequency (kHz): 0.1
