Kapazitiver Sensor

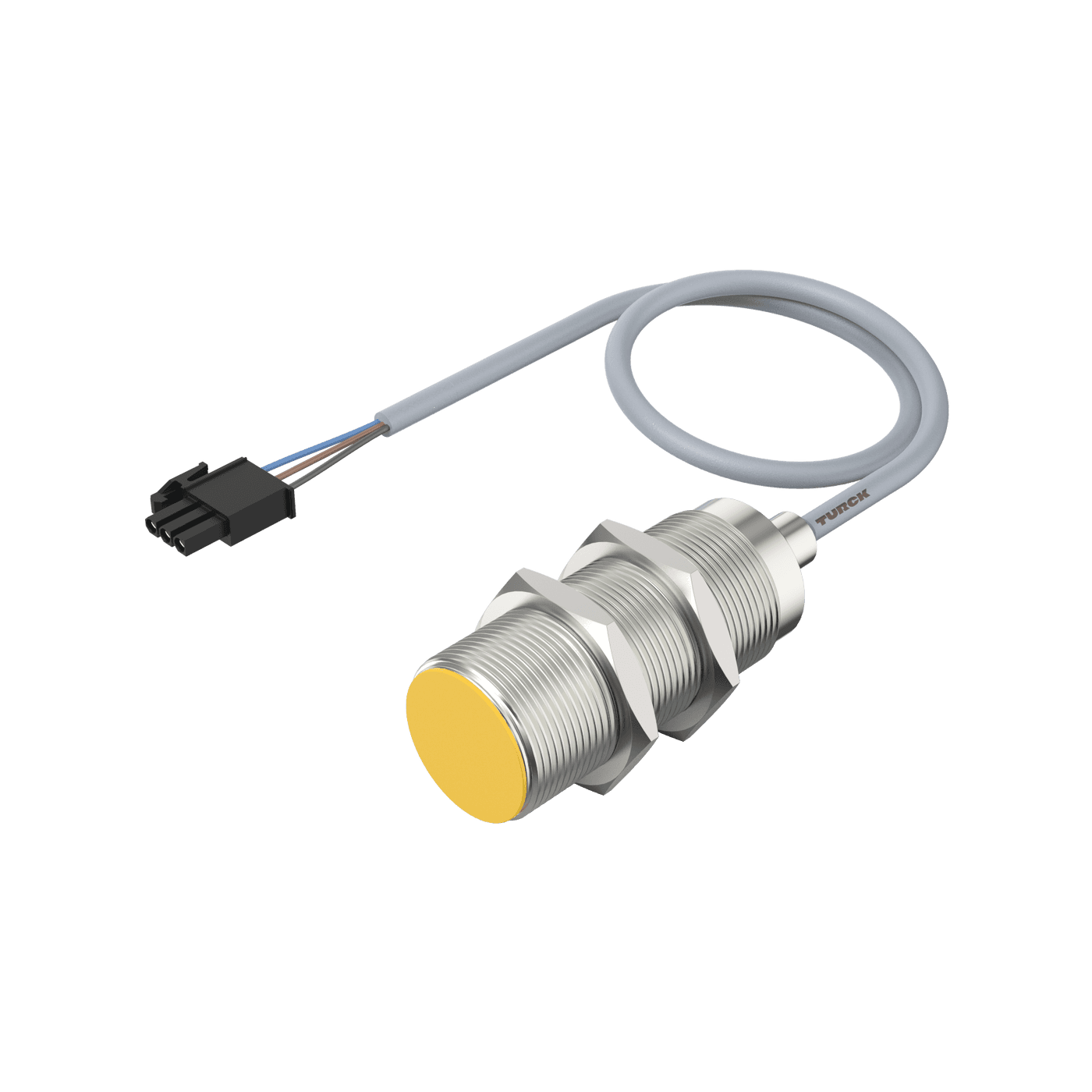

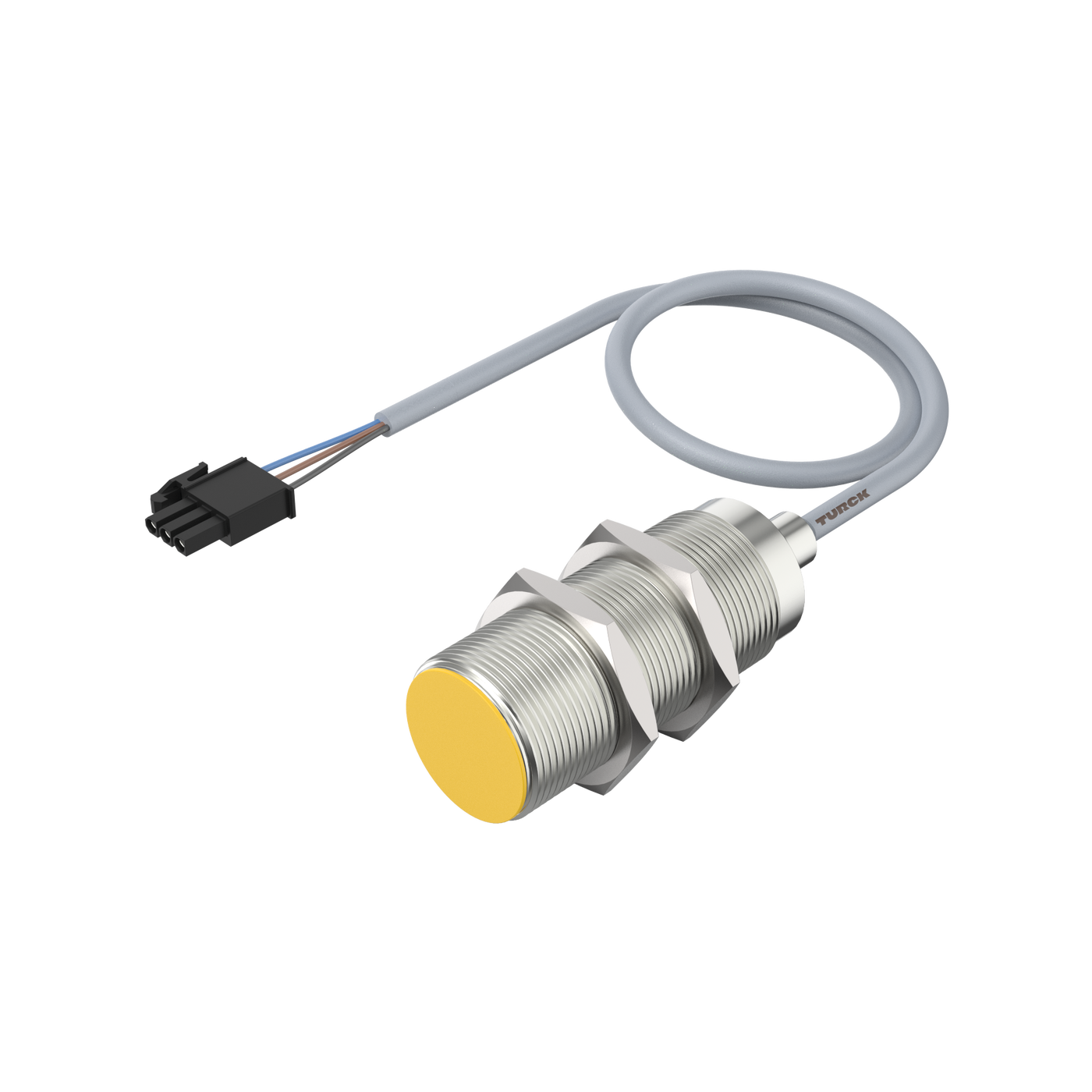

BCE7.7-M30-AP6X-0.42-AMP01-3P/S250

Order ID no. 100052957

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -40
Cable length (m): 0.42
Connector type: AMP01-3-P
Design: Threaded barrel
Electrical connection: Connector
Function: Continuous level measurement, For dry granules, For highly viscous media, Level detection
Housing material: Metal/plastic
Housing quality: CuZn
Measuring principle: Capacitive
Media temperature max. (°C): 70
Media temperature min. (°C): -40
Medium: Bulk goods, liquids
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP/NPN, PNP preset
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO contact
