RI360P1-QR14-LU4X2-0.15-DT04-3P/S97/S127 | TURCK - Your Global Automation Partner

Inductive Angle Sensor

RI360P1-QR14-LU4X2-0.15-DT04-3P/S97/S127

Order ID no. 1593007

homeHome
Loading...

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -40
Cable length (m): 0.15
Connector type: Deutsch DT04-3P
Design: Rectangular

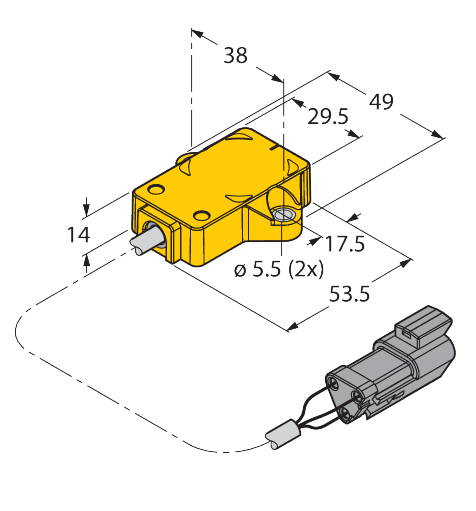

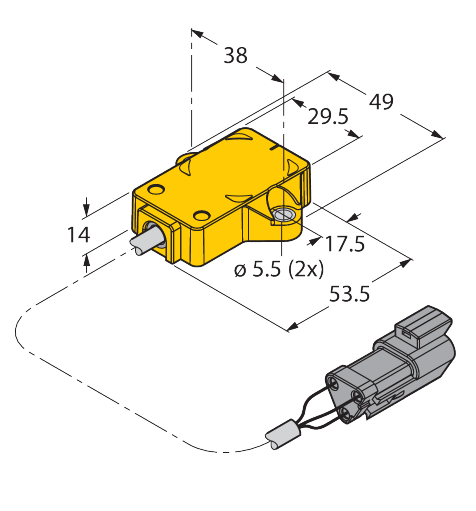

Dimensions (L x W x H): 53,5 mm x 49 mm x 14 mm
Electrical connection: Cable with connector
Encoder line: Premium-Line
Flange type: Flange without mounting element
Housing material: Plastic
Housing quality: PBT-GF30-V0
Measuring principle: Inductive
Operating voltage: DC
Output function: Analog output
Output type: Absolute singleturn
Protection class: IP68, IP69K
Resolution: 0.09°
Shaft diameter D (mm): 6 mm, 6.35 mm
Shaft Type: Blind hole shaft
Technology: Contactless

Key Features

Protection class

homeTurck-Shop
Products
Others
RI360P1-QR14-LU4X2-0.15-DT04-3P/S97/S127

IP68, IP69K

In Stock
Price Group	G1
List Price	150,20 €

Item Total150,20 €

Quantity
