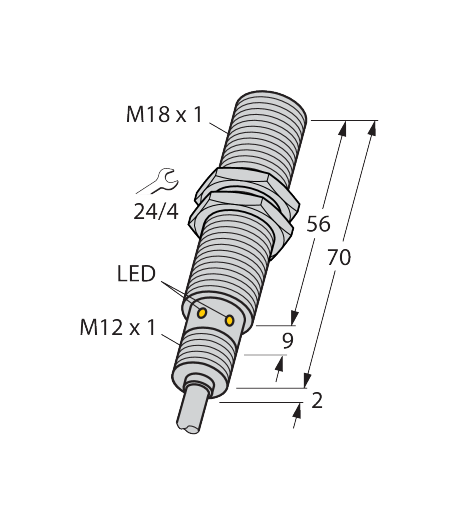

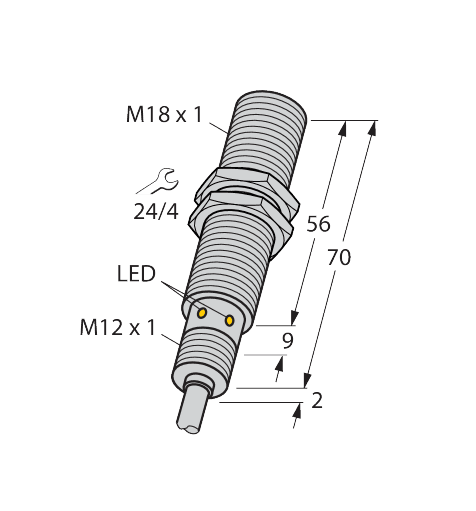

Inductive Sensor

BI8U-EM18EWD-VP44X

Order ID no. 1634927

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Cable color: White
Cable length (m): 2
Design: Threaded barrel
Electrical connection: Cable
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 8
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: Complementary contact
Switching frequency (kHz): 1.5
