Capacitive Sensor

BCF5-S18-RP4X-0.38-PSG3M/S90

Order ID no. 2503054

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable length (m): 0.38
Connector type: M8 x 1
Design: Threaded barrel

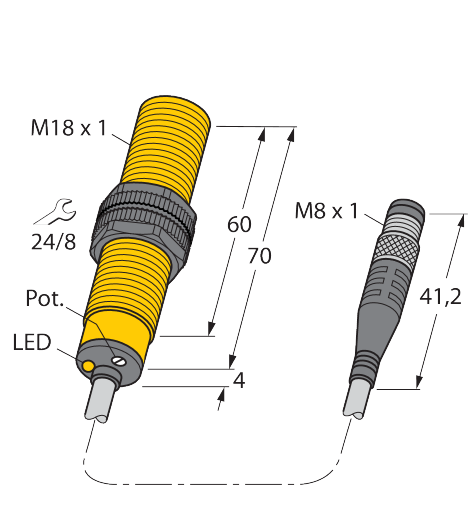

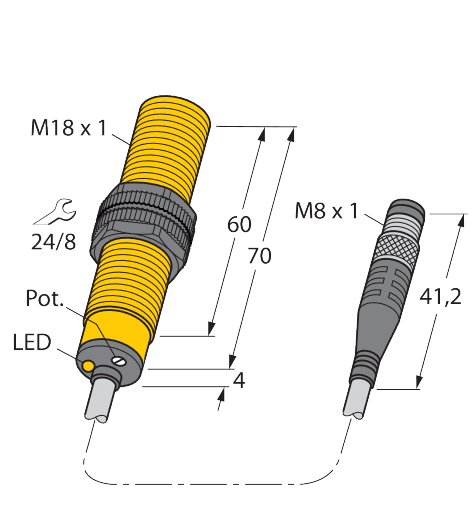

Dimensions (L x W x H): 74 mm
Electrical connection: Cable with connector
Function: For highly viscous media
Housing material: Plastic
Housing quality: PA12-GF30, PEI
Measuring principle: Capacitive
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 5
Special features: Improved background suppression, Increased EMC protection, Suited for highly viscous media
Switching element function: NC contact
Switching frequency (kHz): 0.1
