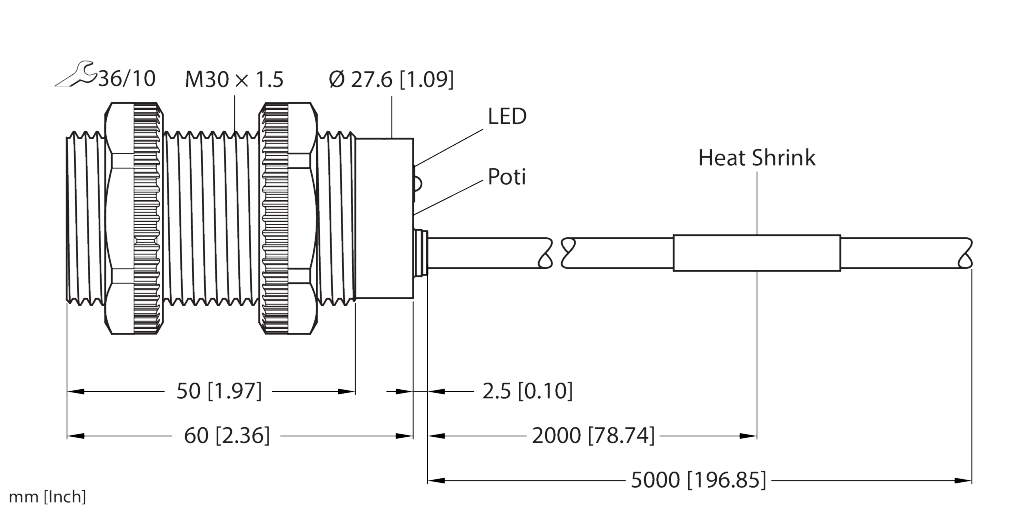

BCF10-S30-VP4X 5M SPLICED

Order ID no. 2506198

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable length (m): 5
Design: Threaded barrel
Dimensions (L x W x H): 62,5 mm
Electrical connection: Cable
Function: For highly viscous media
Housing material: Plastic
Housing quality: PA12-GF30, PEI
Measuring principle: Capacitive
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 10
Special features: Improved background suppression, Increased EMC protection, Suited for highly viscous media
Switching element function: Complementary contact
Switching frequency (kHz): 0.1
