EZ-Array Measuring Light Screen Controller

MACP-1

Order ID no. 3047820

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -20
Approvals: CE, cULus recognized
Communication protocol: RS232, RS485
Design: Rectangular

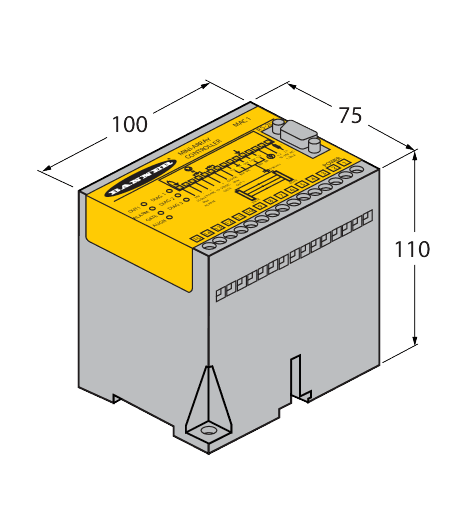

Dimensions (L x W x H): 110 mm x 100 mm x 75 mm
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Function: Controller
Housing material: Plastic
Housing quality: PC
Output function: PNP
Protection class: IP20
Switching element function: 2 x NO contact
