EZ-Array Measuring Light Screen Controller

MAHCVP-1

Order ID no. 3061331

Ambient temperature max. (°C): 50
Ambient temperature min. (°C): 0
Approvals: CE, cULus recognized
Communication protocol: RS232, RS485
Design: Rectangular

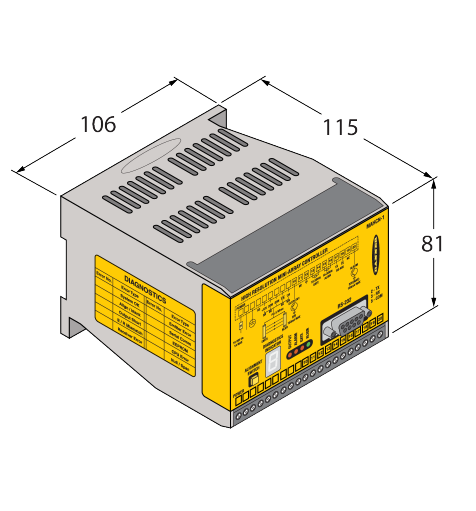

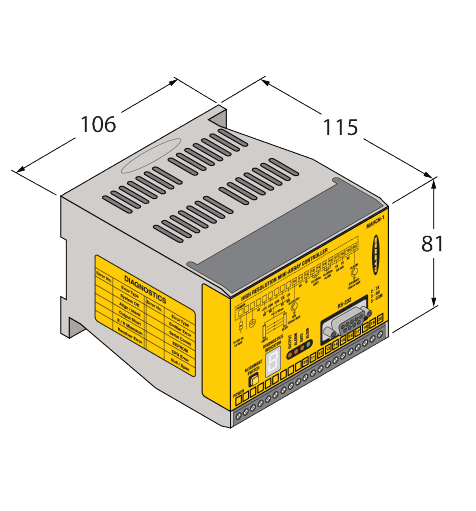

Dimensions (L x W x H): 115 mm x 106 mm x 81 mm
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Function: Controller
Housing material: Plastic
Housing quality: PC
Output function: PNP/Analog output
Protection class: IP20
Switching element function: NO contact
