DXM150-B2R3 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Network Controller

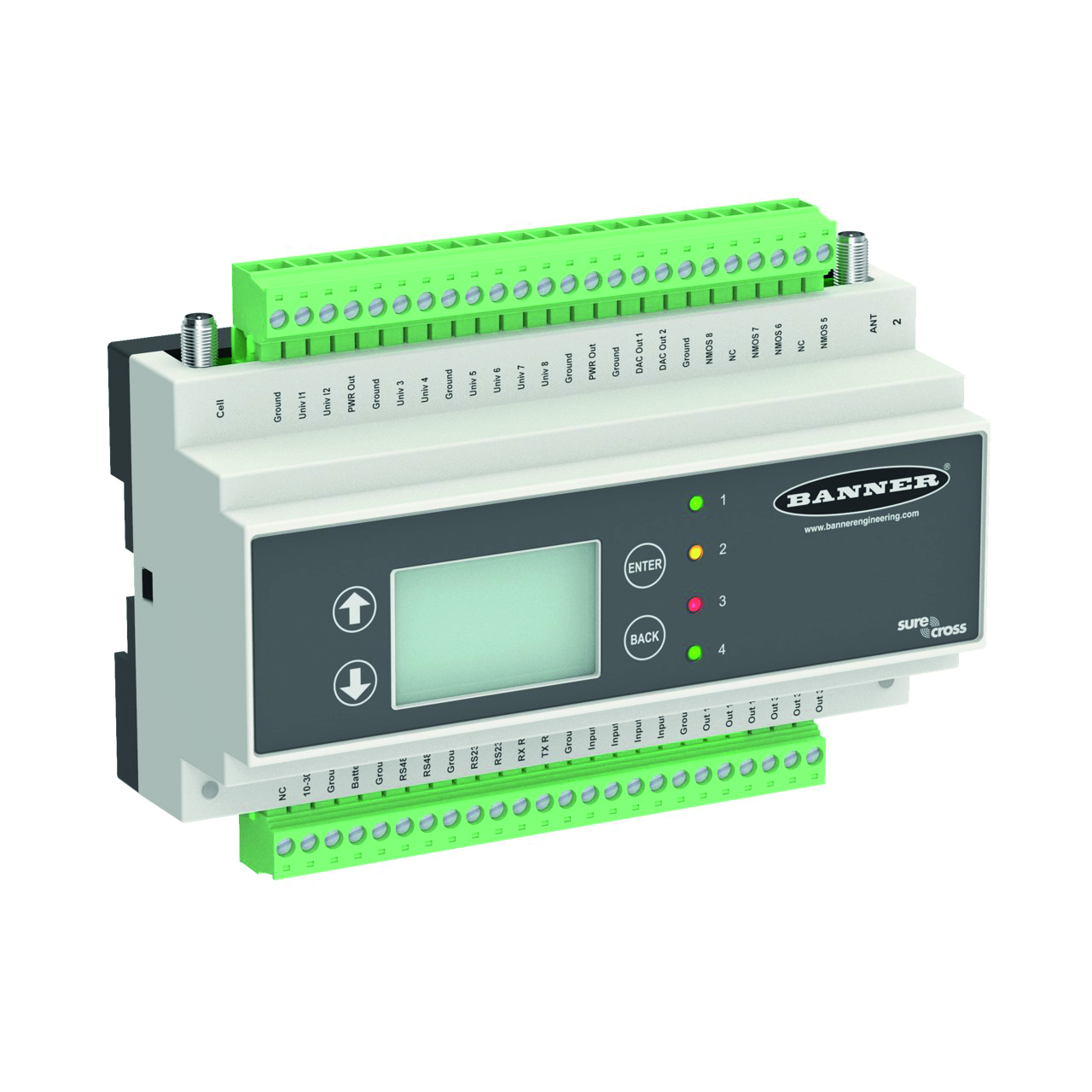

DXM150-B2R3
Order ID no. 3803761
home
Home
Loading...
Technical Data
Downloads
Special features
Small part counting
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Antenna connection
RP-SMA female connector
Runs with battery
No
Communication protocol
EtherNet/IP, Modbus TCP, Modbus RTU, RS232, RS485
Electrical connection
Screw terminals
Design
Rectangular

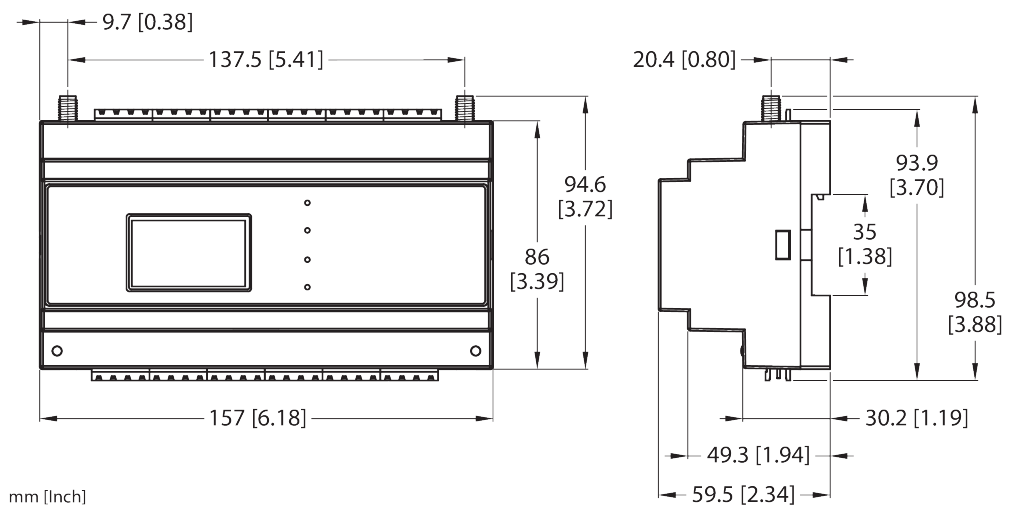

Dimensions (L x W x H)
86 mm x 105 mm x 59,45 mm
Frequency band
2.4-GHz ISM band
Frequency range
2.402 - 2.483 GHz
Housing material
Plastic
Housing quality
PC
Input type
NPN/PNP/4…20 mA/0…10 V/counter/thermistor
Function
Star topology
Operating voltage
DC
Output function
PNP/NPN, analog output
Output type
PNP/NPN/0…20 mA or 0…10 V
Protection class
IP20
Max. range (mm)
3200000
Switching element function
Programmable
Key Features
Protection class
IP20
In Stock
Price Group
F3
List Price
€1,265.00
