DX80N2Q45BL-NH | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
DX80 Star 2.4 GHz Wireless Q45 Sensor Push Button Node With Red and Yellow LEDs
DX80N2Q45BL-NH
Order ID no. 3803763
home
Home
Loading...
Technical Data
Downloads
Special features
wireless
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Antenna connection
Internal (wire loop)
Runs with battery
Yes
Design
Rectangular

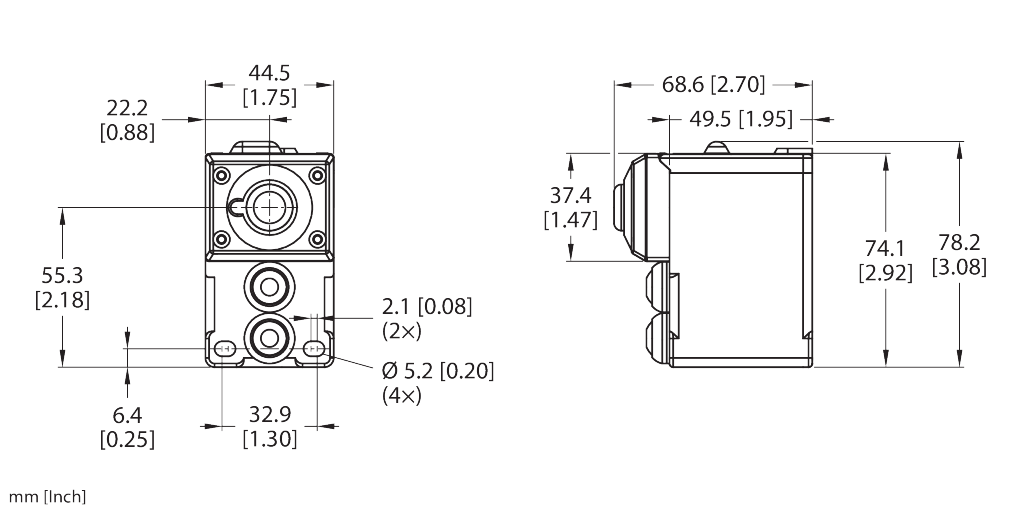

Dimensions (L x W x H)
68,9 mm x 44,5 mm x 78,2 mm
Frequency band
2.4-GHz ISM band
Frequency range
2.402…2.483 GHz
Housing material
Plastic
Housing quality
PBT, Lexan
Input type
Pushbutton
Operating voltage
DC
Output type
4-color LED indicator
Protection class
IP67
Max. range (mm)
1000000
Key Features
Protection class
IP67
In Stock
Price Group
F3
List Price
€369.90
Item Total
€369.90
