Obsolete product as of 22.01.2021 Please use 46021550 instead.

BI3U-EMT08-AP6X-V1131/S1589

Order ID no. 4602154

Special features: uprox3, Resistant to magnetic fields, Factor 1, PTFE-coated, weldguard®
Ambient temperature max. (°C): 60
Ambient temperature min. (°C): 0
Electrical connection: Connector
Connector type: M8 x 1
Design: Threaded barrel

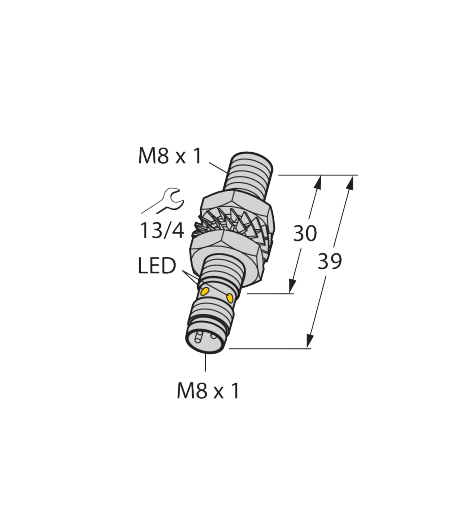

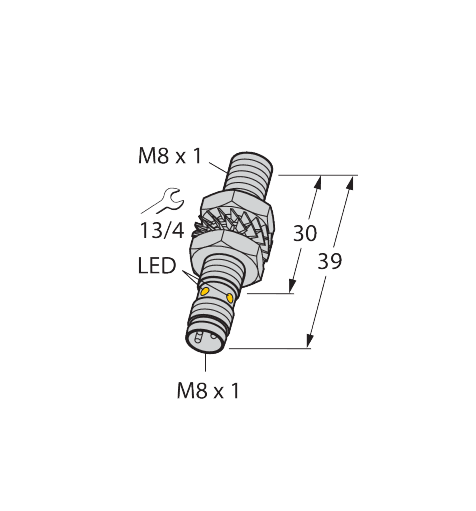

Dimensions: 8 mm x 39 mm
Housing material: Stainless steel
Housing quality: 1.4427 SO
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: PA12
Rated switching distance (mm): 3
Switching element function: NO contact
Switching frequency (kHz): 1
