Magnetic Field Sensor

BIM-INR-AN6X-0.3-PSG3S

Order ID no. 4623802

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 0.3
Connector type: Ø 8 mm
Cylindrical design: C-groove cylinder, Dovetail cylinder, grooved, Round cylinder, T-groove cylinder, Tie-rod cylinder
Design: Rectangular

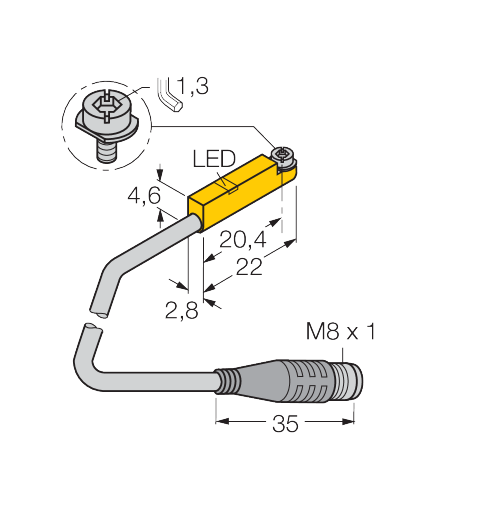

Dimensions (L x W x H): 22 mm x 2,8 mm x 4,6 mm
Electrical connection: Cable with connector
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Output function: NPN
Protection class: IP67
Quality active face: PP
Switching element function: NO contact
Switching frequency (kHz): 0.5
