Magnetic Field Sensor

BIM-NST-AP6X-0.2XOR-RS4

Order ID no. 4685601

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Orange
Cable length (m): 0.2
Connector type: M12 x 1
Cylindrical design: Dovetail cylinder, grooved, Profile cylinder, T-groove cylinder
Design: Rectangular

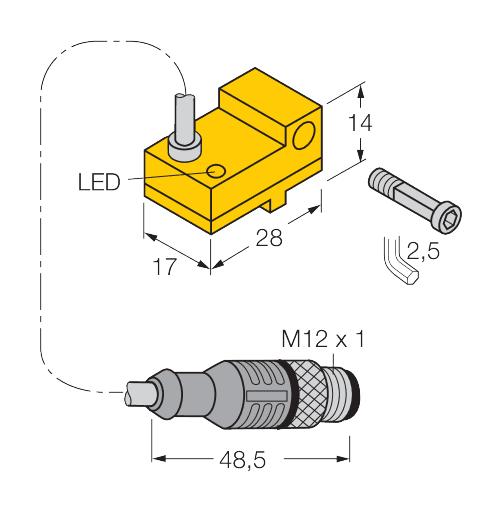

Dimensions (L x W x H): 28 mm x 17 mm x 14 mm
Electrical connection: Cable with connector
Housing material: Plastic
Housing quality: PA12-GF30
Operating voltage: DC
Output function: PNP
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO contact
Switching frequency (kHz): 1
