Magnetic field sensor

BIM-UNT-2AP6X-0.6-RSC4.4T/S930/S3395

Order ID no. 46859281

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Electrical connection: Connector
Connector type: M12 x 1
Design: Rectangular
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

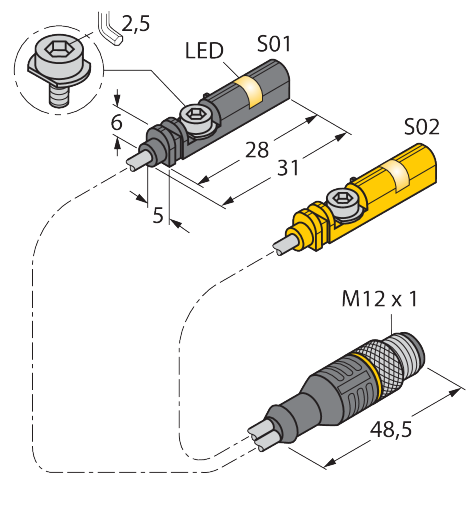

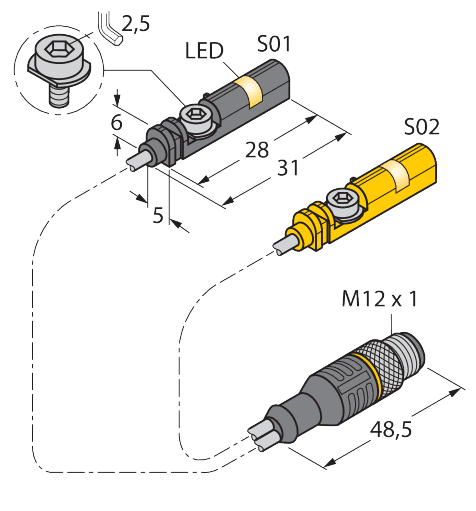

Dimensions (L x W x H): 28 mm x 5 mm x 6 mm
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Output function: PNP
Quality active face: PP
Switching element function: NO contact
