Temperature Detection

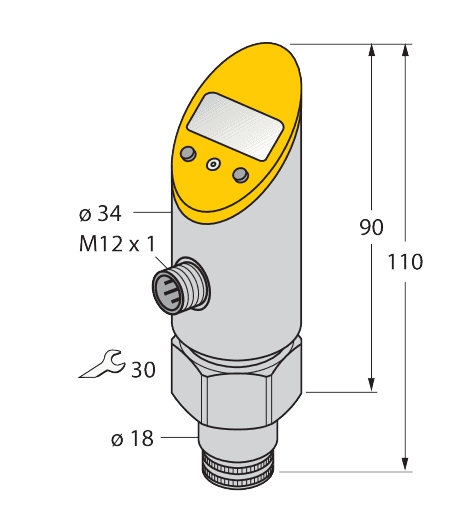

TS-400-LI2UPN8X-H1141
Order ID no. 6840007
In Stock
Price Group
D2
List Price
€396.20
Item Total
€396.20
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Others
TS-400-LI2UPN8X-H1141
Technical Data
Downloads
Detection type
medium contact
Electrical output
Current output (3-wire), Switching output
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-40
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 x 1
Design
With display (external probe)
Display
4-digit 7-segment display, rotatable by 180°
Housing material
Stainless-steel/Plastic
Housing quality
1.4305 (AISI 303)
Process connection
Cylindrical, Ø 18 mm
Measuring range
-50...500 °C
Operating voltage
DC
Output function
PNP/NPN
Protection class
IP67
Switching element function
NO/NC programmable
Key Features
Protection class
IP67
