Switching Power Supply Module

IM82-24-20

Order ID no. 7545044

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: UL
Electrical connection: Screw terminals

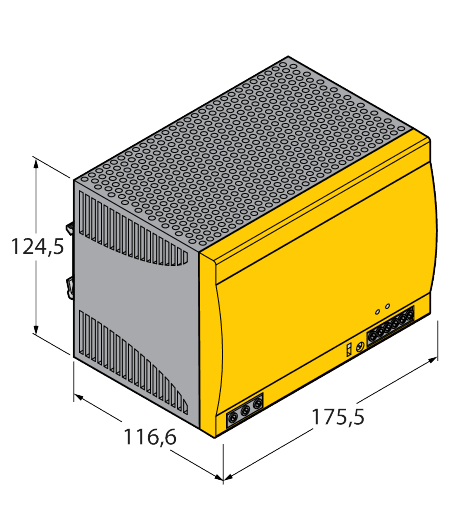

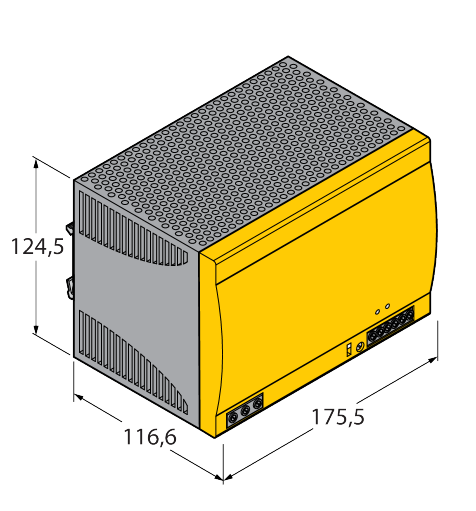

Dimensions (L x W x H): 124,5 mm x 175,5 mm x 116,6 mm
Ex version: no
Housing material: Metal
Housing quality: Polycarbonate/ABS
Internal fuse: T 10 A/250 VAC
Nominal current (A): 20
Nominal output voltage (V): 24
Digital output: Relay output
Parallel mode: yes, switchover initiated by a switch, max. 3 devices each with 90 % load current
Power Good Output: yes
Power supply: 230 VUC
Protection class: IP20
