Capacitive Sensor

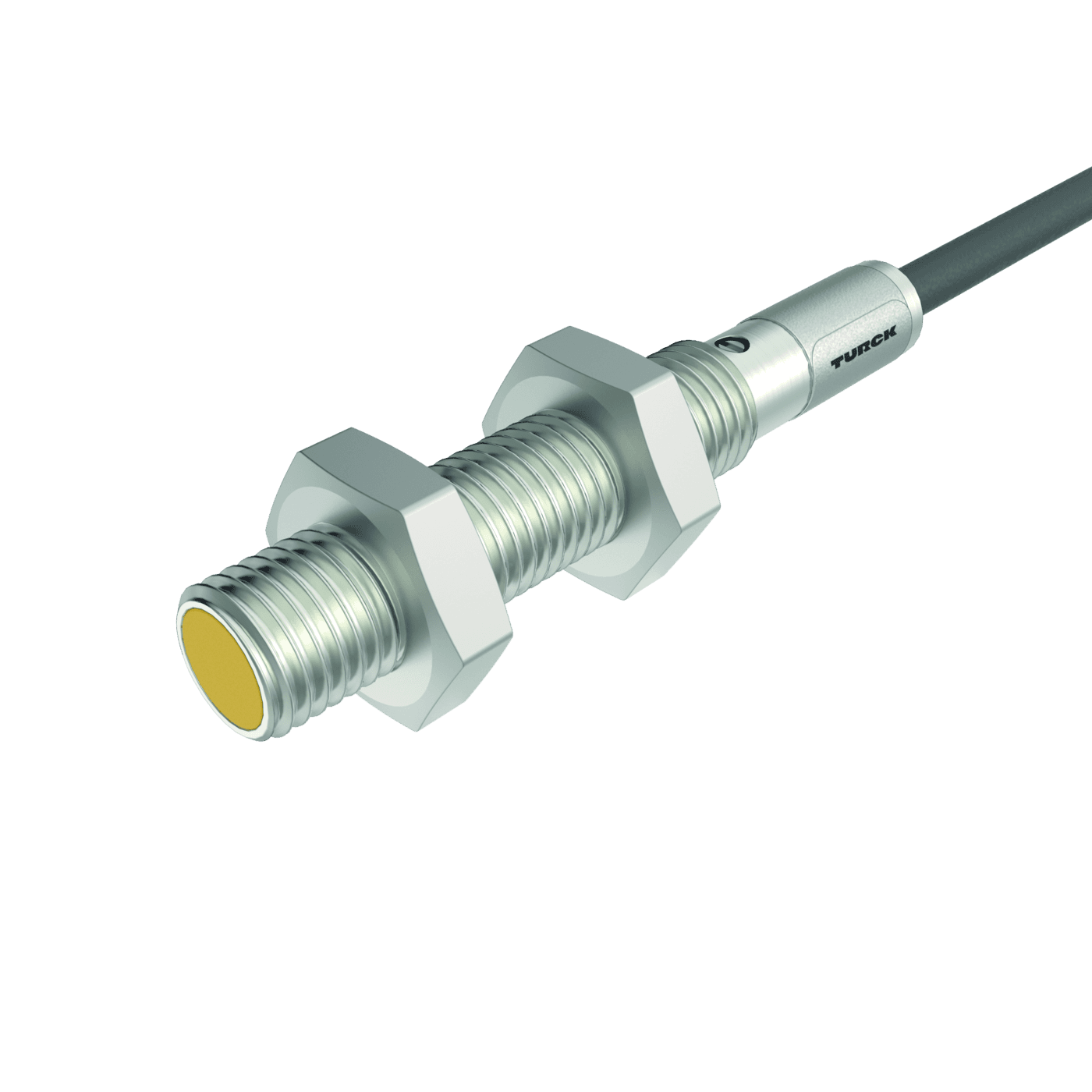

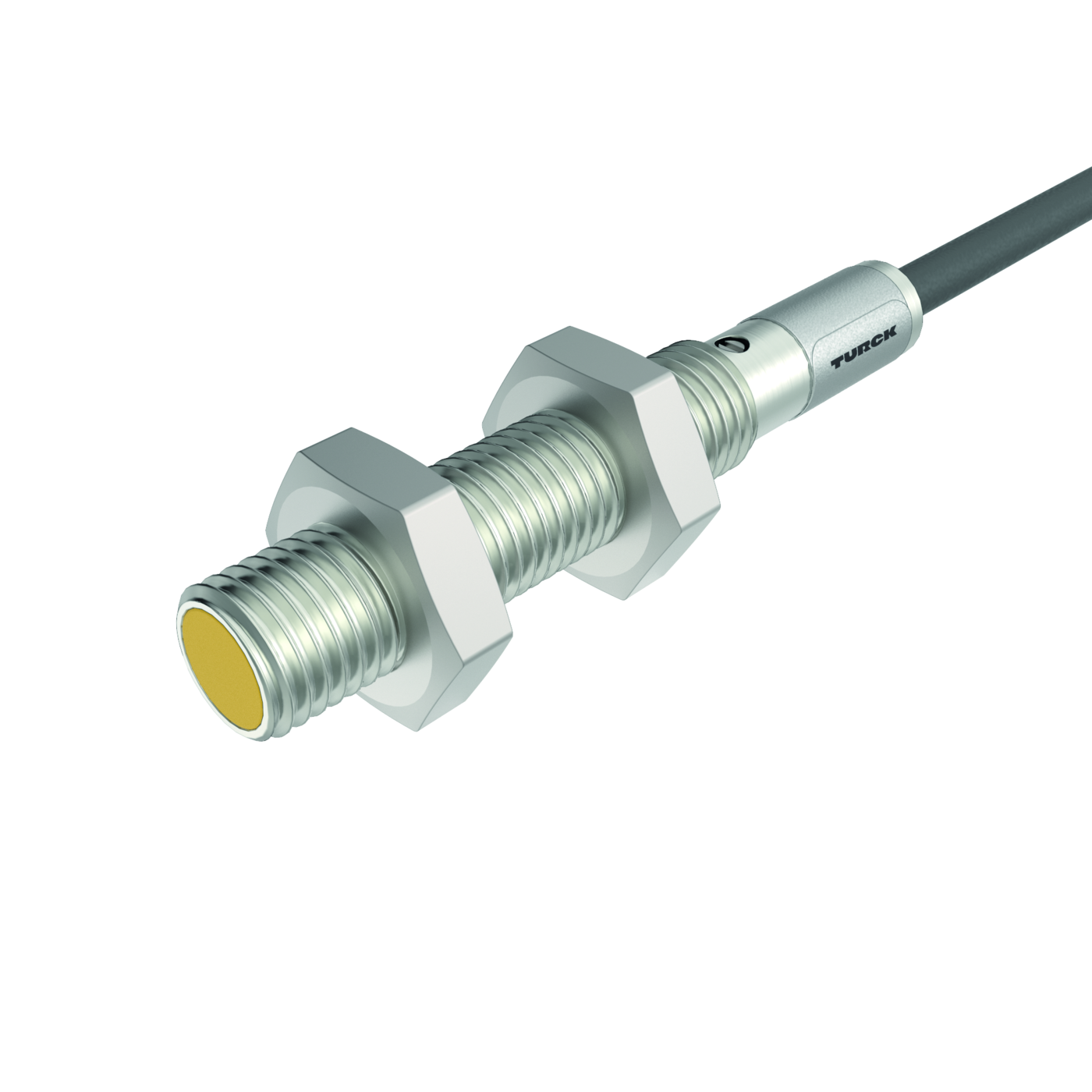

BC2-EM08-UN8X
Order ID no. 100021822
In Stock
Price Group
E1
List Price
€160.80
Item Total
€160.80
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Function
Level detection
Detection type
medium contact
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable length (m)
2
Electrical connection
Cable
Design
Threaded barrel

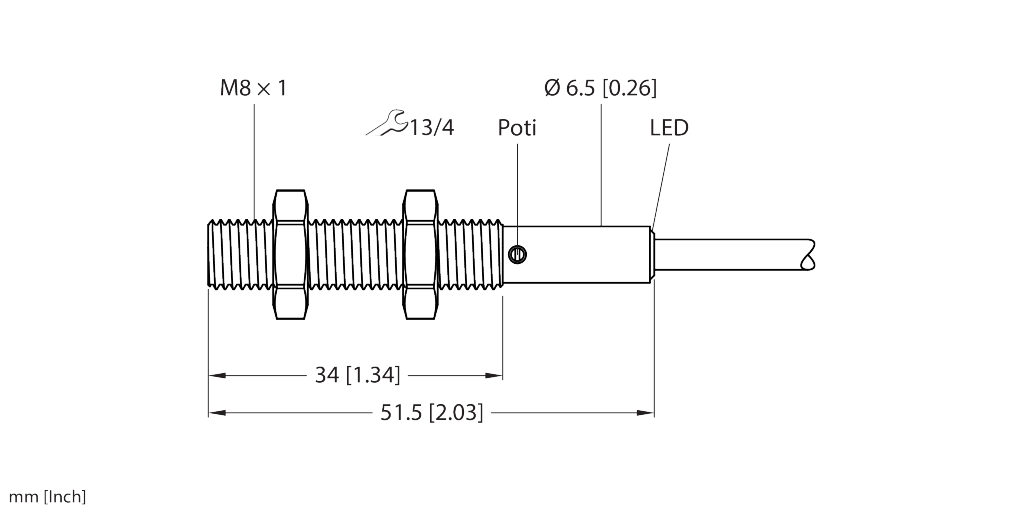

Dimensions (L x W x H)
51,5 mm
Housing material
Stainless steel
Medium
liquids, Bulk goods
Media temperature max. (°C)
70
Media temperature min. (°C)
-25
Mounting conditions
Flush
Operating voltage
DC
Output function
NPN
Measuring principle
Capacitive
Protection class
IP67
Quality active face
PBT
Rated switching distance (mm)
2
Switching element function
NO/NC (NO pre-set)
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
2
