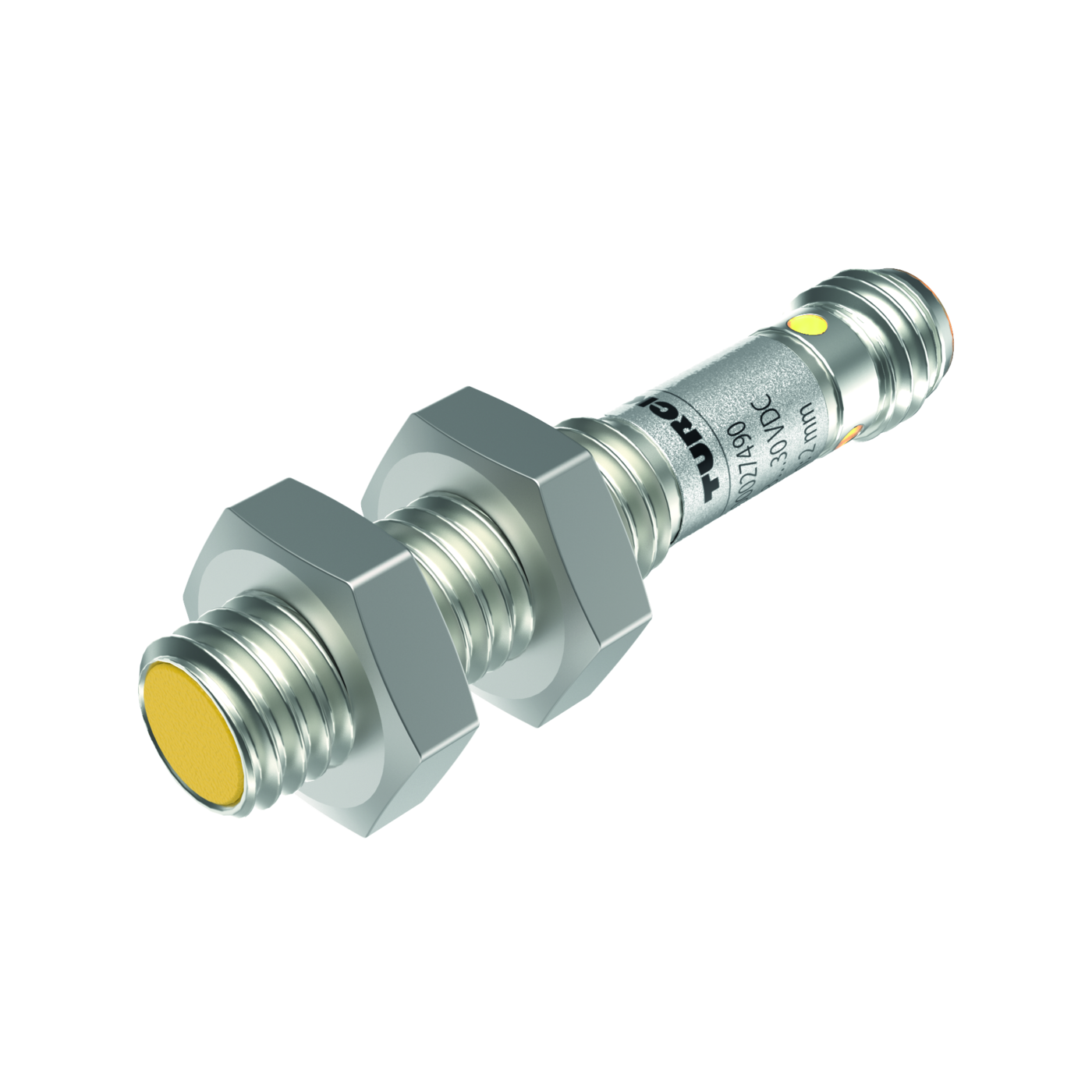

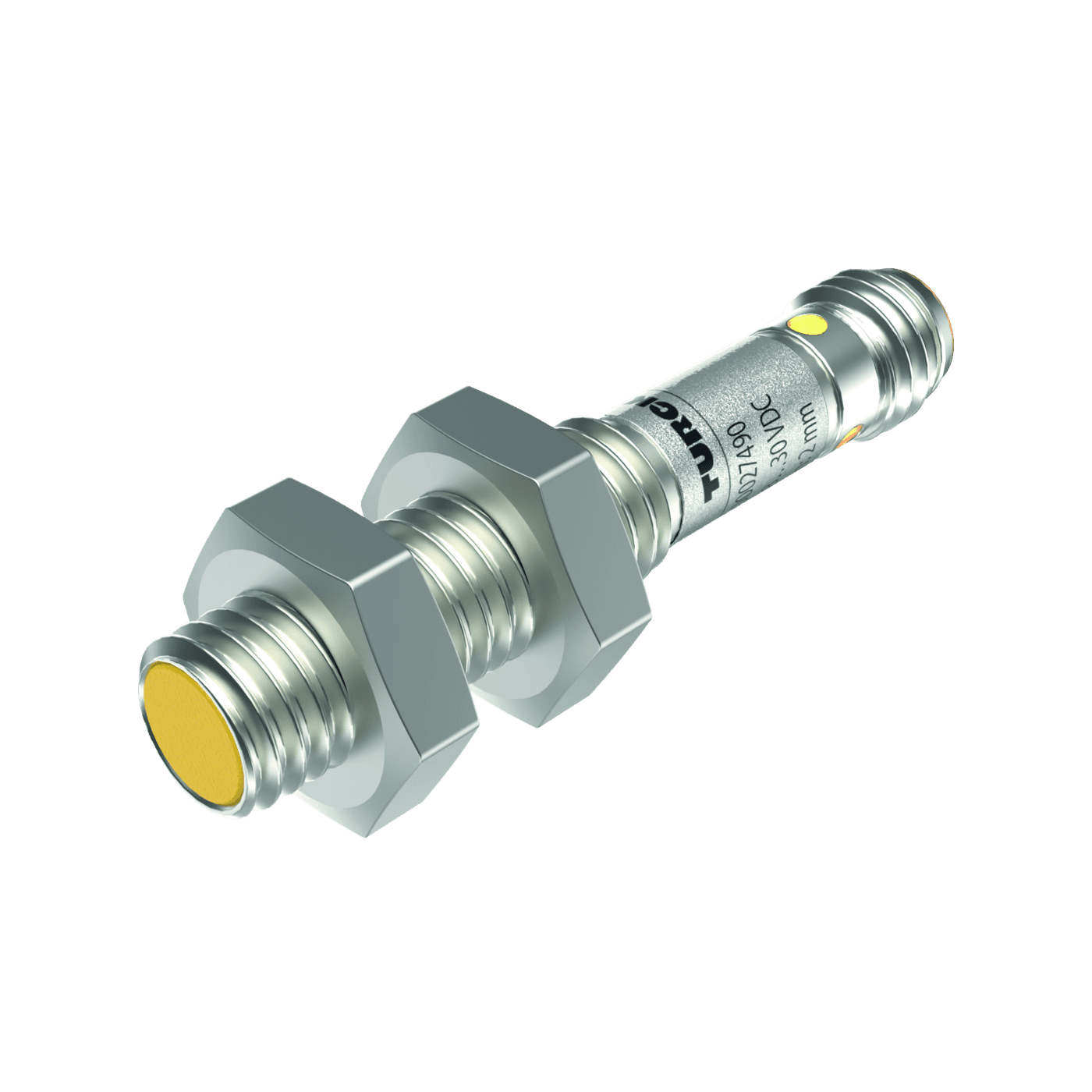

Capacitive Sensor
BCT2-M08-IOL-V1131
Order ID no. 100027490
In Stock
Price Group
E1
List Price
€142.40
Item Total
€142.40
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Function
Level detection
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M8 x 1
Design
Threaded barrel

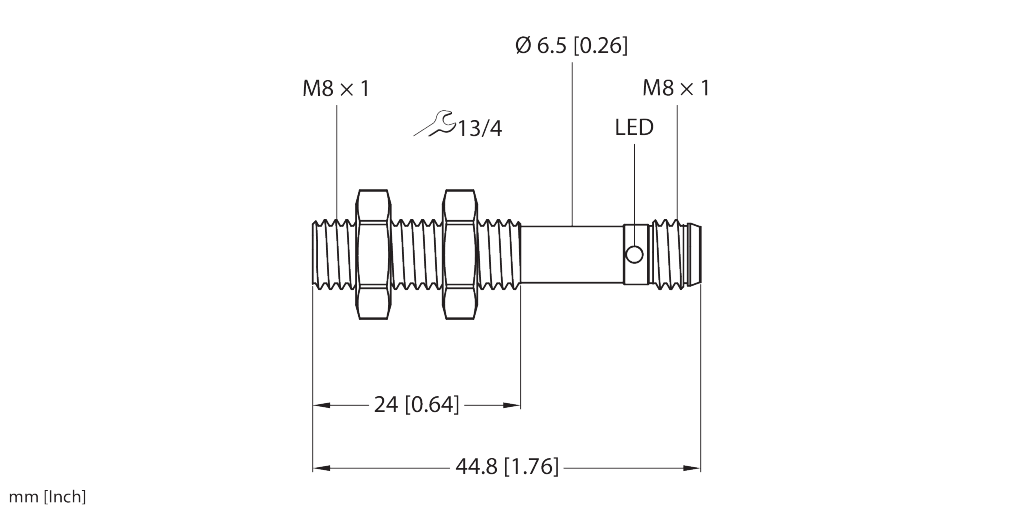

Dimensions (L x W x H)
44,8 mm
Housing material
Metal
Housing quality
Nickel-plated brass
Medium
liquids, Bulk goods
Media temperature max. (°C)
70
Media temperature min. (°C)
-25
Mounting conditions
Flush/Non-flush
Output function
PNP/NPN
Measuring principle
Capacitive
Protection class
IP67
Quality active face
PBT
Rated switching distance (mm)
2
Switching element function
NO/NC programmable
Switching frequency (kHz)
0.2
Key Features
Electrical connection
Connector
Mounting conditions
Flush/Non-flush
Output function
PNP/NPN
Rated switching distance (mm)
2
