Capacitive Sensor

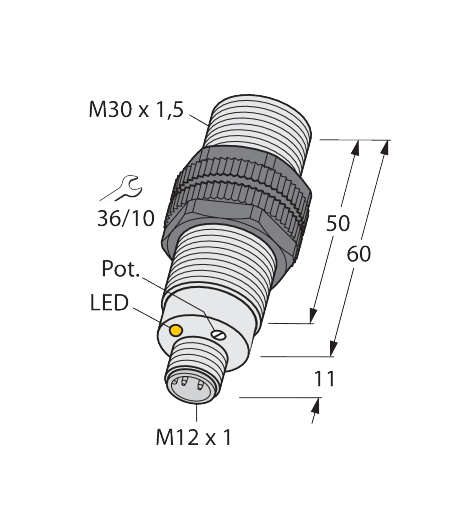

BCC10-S30WD-AP4X-H1141

Order ID no. 2503052

Item Total€200.20

Quantity

Protection class: IP69K front, IP67 rear
Switching element function: NO contact
Output function: PNP
Approvals: UL
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: LCP
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 100
Measuring principle: Capacitive
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 10
Construction size: M30 x 1.5
Special features: EMC and ESD resistant, Especially for the detection of dry pellets, Wash down
Function: For dry granules
Dimensions: 30 mm
Quality active face: LCP
Switching frequency (kHz): 0.1
