Capacitive Sensor
BC5-S185-AP4X
Order ID no. 25035
In Stock
Price Group
E1
List Price
€179.70
Item Total
€179.70
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Capacitive Sensors
BC5-S185-AP4X
Technical Data
Downloads
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Design
Threaded barrel
Electrical connection
Cable
Housing material
Plastic
Housing quality
PVDF
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Measuring principle
Capacitive
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
7.5
Construction size
M18 x 1
Special features
Chemical-resistant

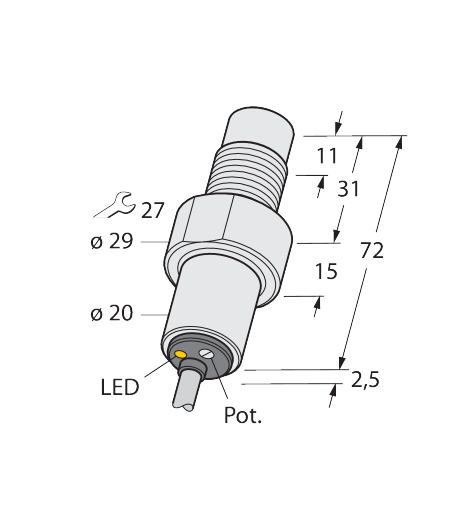

Dimensions
18 mm x 74,5 mm
Quality active face
PVDF
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
7.5
