BC5-M18-AP4X | TURCK - Your Global Automation Partner

Capacitive Sensor

BC5-M18-AP4X

Order ID no. 2504001

homeHome
Loading...

Protection class: IP67
Switching element function: NO contact
Output function: PNP
Cable length (m): 2
Approvals: UL
Design: Threaded barrel
Electrical connection: Cable
Housing material: Metal
Housing quality: CuZn
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 70
Measuring principle: Capacitive
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 5

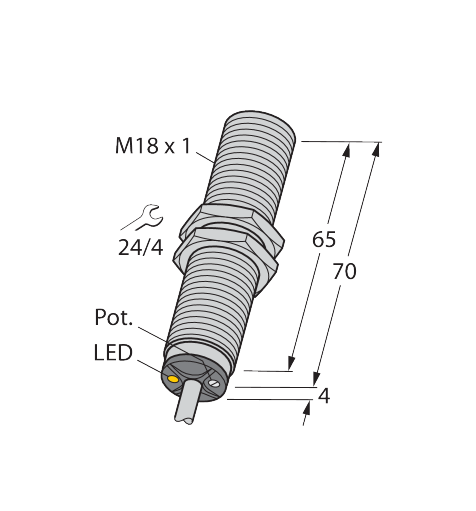

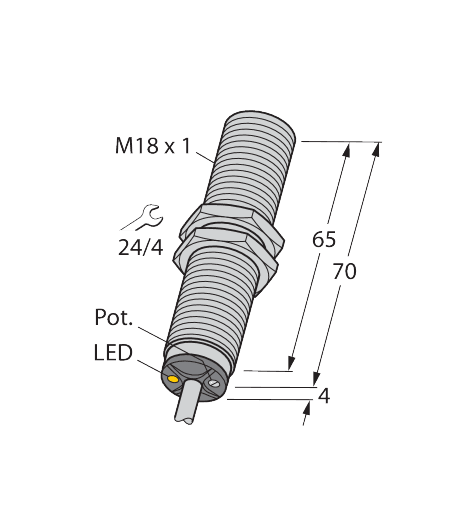

Dimensions: 18 mm x 74 mm
Quality active face: PBT-GF30-V0
Switching frequency (kHz): 0.1

Key Features

Electrical connection: Cable
Mounting conditions: Flush
Output function: PNP
Rated switching distance (mm): 5

In Stock
Price Group	E1
List Price	€152.90
