BC10-P30SR-VN4X2

BC10-P30SR-VN4X2

Thumbnail for BC10-P30SR-VN4X2

Thumbnail for BC10-P30SR-VN4X2

Capacitive Sensor

BC10-P30SR-VN4X2

Order ID no. 25051

In Stock
Price Group	E1
List Price	€159.70

Item Total€159.70

Quantity

Contact Support

homeHome
Loading...

Protection class: IP67
Switching element function: Complementary contact
Output function: NPN
Design: Threaded barrel
Electrical connection: Terminal chamber
Housing material: Plastic
Housing quality: ABS
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Measuring principle: Capacitive
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 15
Approvals: UL

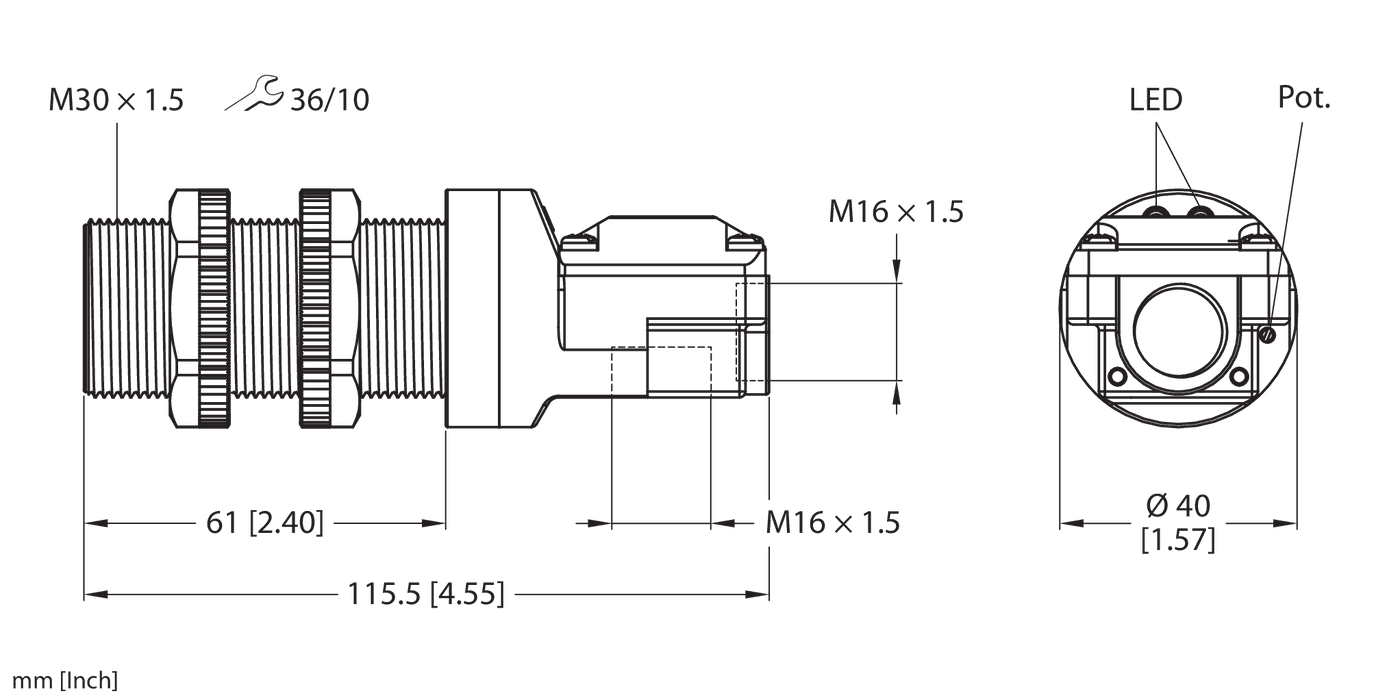

Dimensions: 30 mm x 115 mm
Quality active face: ABS
Switching frequency (kHz): 0.1

Key Features

Electrical connection: Terminal chamber
Mounting conditions: Flush
Output function: NPN
Rated switching distance (mm): 15
