BC3-M12-AN6X-H1141

BC3-M12-AN6X-H1141

Thumbnail for BC3-M12-AN6X-H1141

Thumbnail for BC3-M12-AN6X-H1141

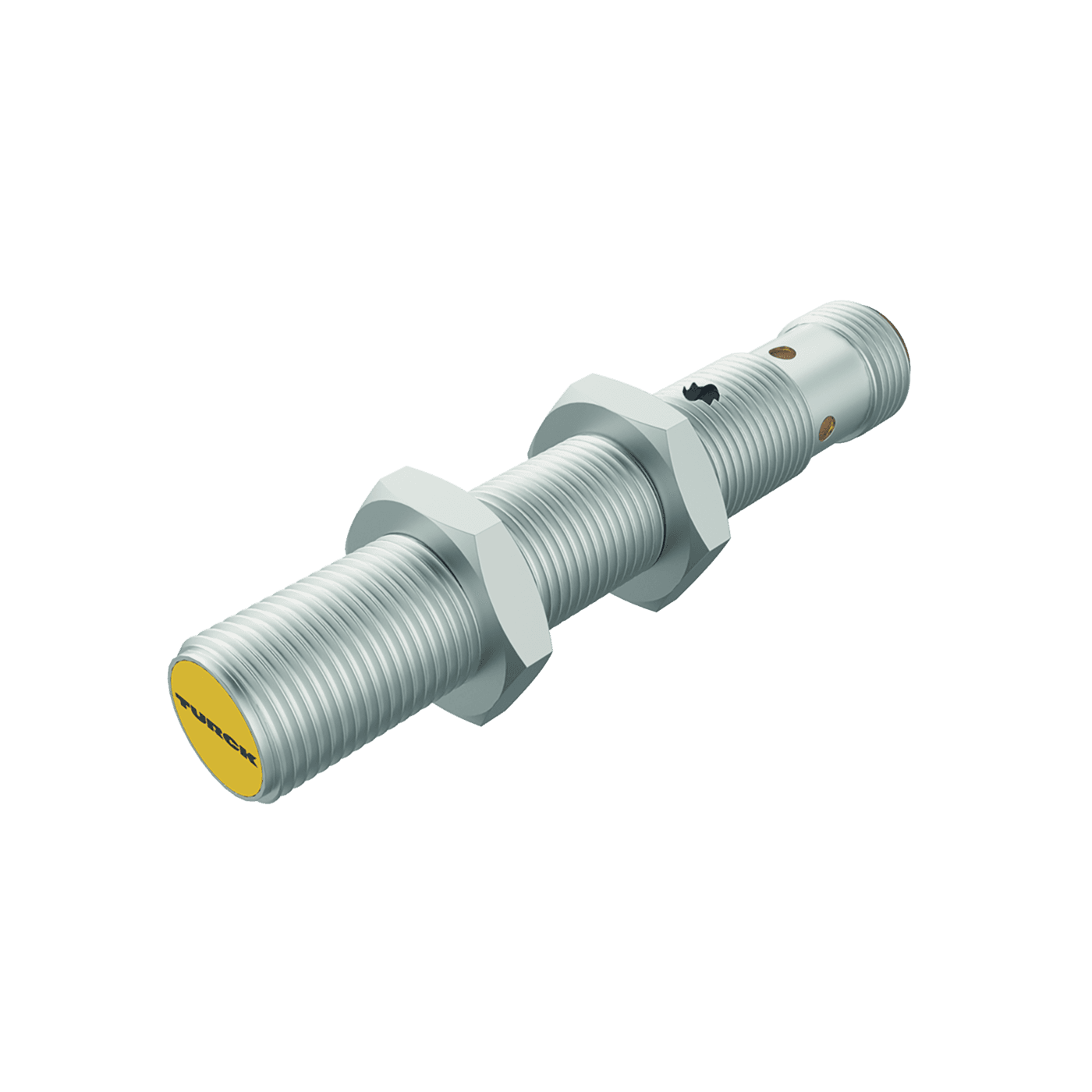

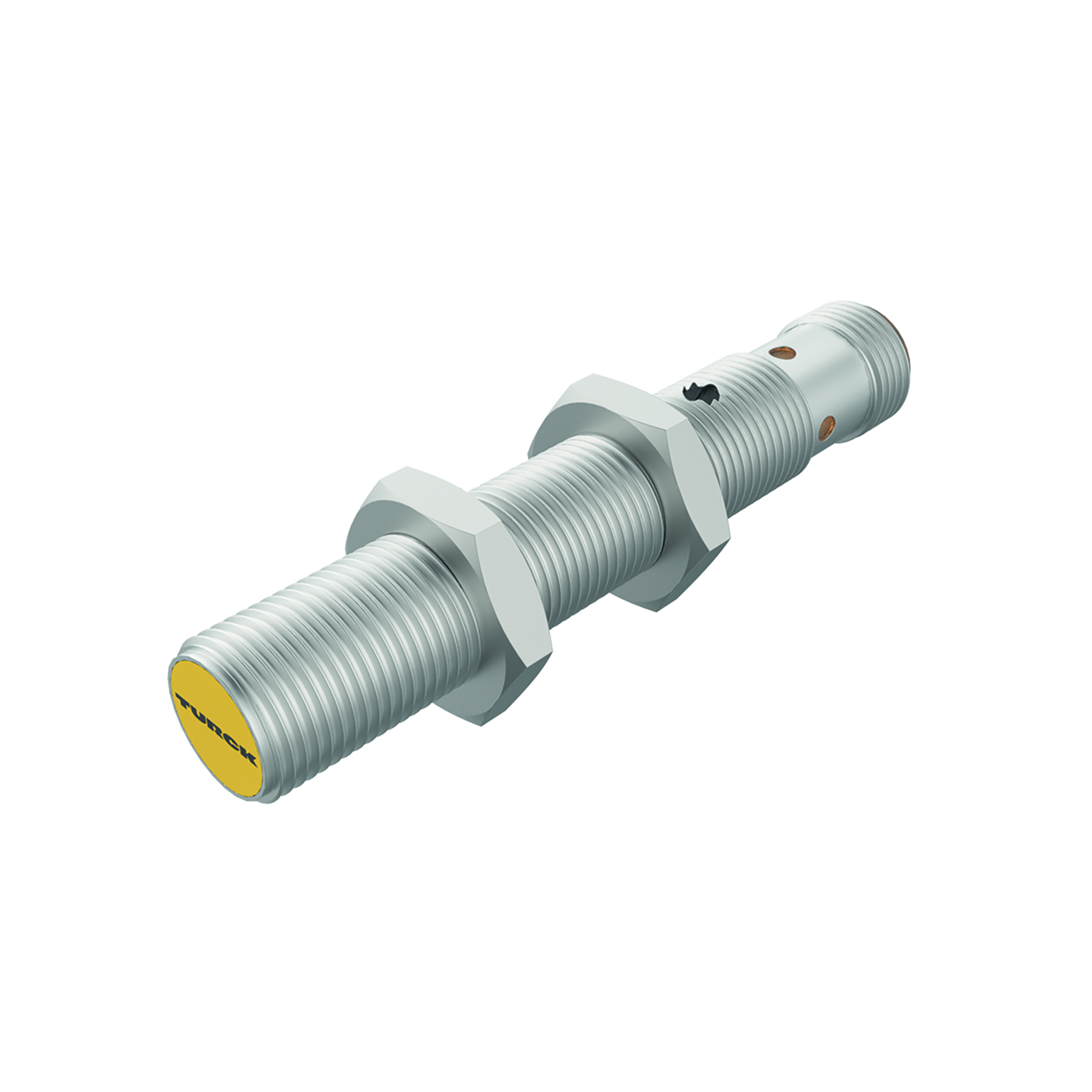

Capacitive Sensor

BC3-M12-AN6X-H1141

Order ID no. 2601012

In Stock
Price Group	E1
List Price	€128.40

Item Total€128.40

Quantity

Contact Support

homeHome
Loading...

Protection class: IP67
Switching element function: NO contact
Output function: NPN
Approvals: UL
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: CuZn
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Measuring principle: Capacitive
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 3

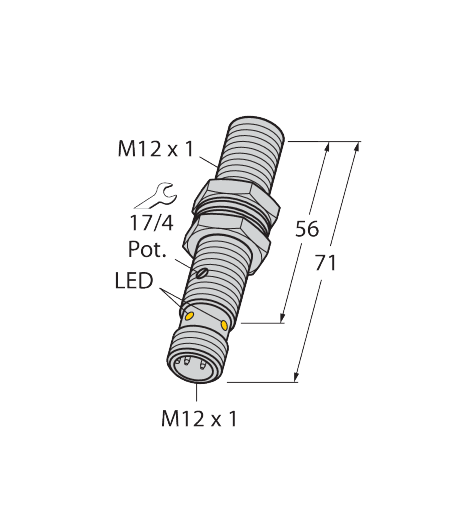

Dimensions: 12 mm x 71 mm
Quality active face: ABS
Switching frequency (kHz): 0.1

Key Features

Electrical connection: Connector
Mounting conditions: Flush
Output function: NPN
Rated switching distance (mm): 3
