BC5-Q08-RN6X2-0.15-PSG3S/S90-S250

BC5-Q08-RN6X2-0.15-PSG3S/S90-S250

Thumbnail for BC5-Q08-RN6X2-0.15-PSG3S/S90-S250

Thumbnail for BC5-Q08-RN6X2-0.15-PSG3S/S90-S250

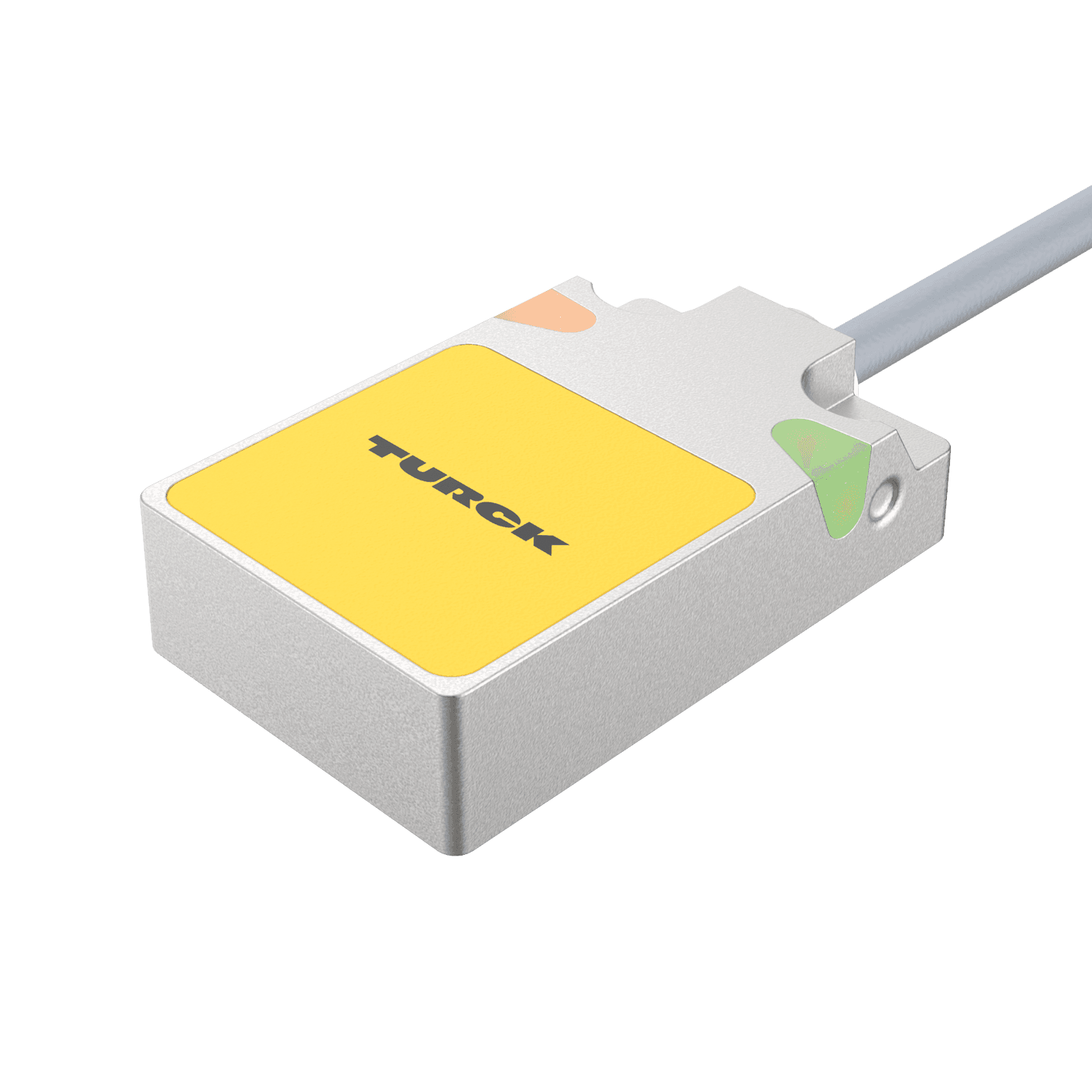

Capacitive Sensor

BC5-Q08-RN6X2-0.15-PSG3S/S90-S250

Order ID no. 2620111

In Stock

homeTurck-Shop
Products
Sensors
Capacitive Sensors
BC5-Q08-RN6X2-0.15-PSG3S/S90-S250

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Electrical connection: Cable with connector
Connector type: M8 x 1
Design: Rectangular

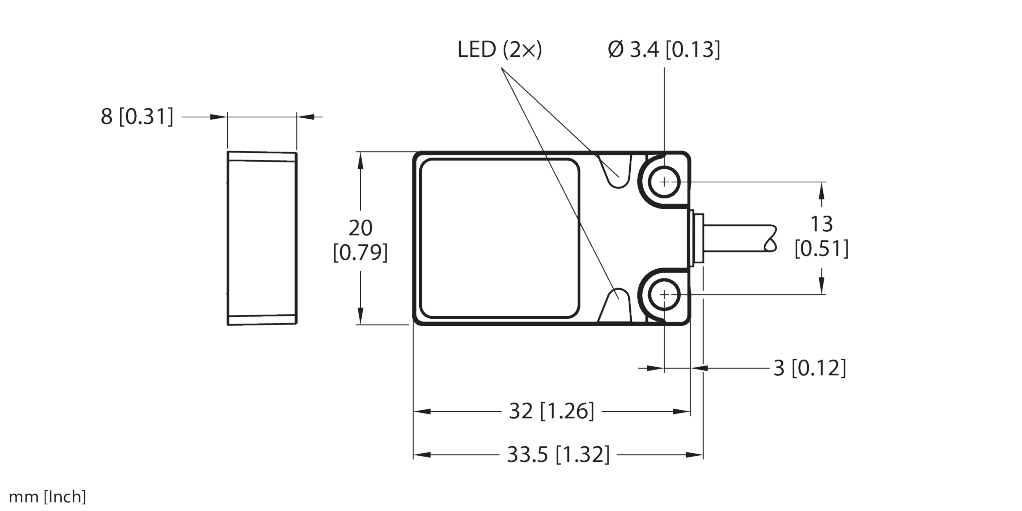

Dimensions (L x W x H): 32 mm
Housing material: Metal
Housing quality: Zamak
Mounting conditions: Flush
Operating voltage: DC
Output function: NPN
Measuring principle: Capacitive
Protection class: IP68
Quality active face: PP
Rated switching distance (mm): 5
Switching element function: NC contact
Switching frequency (kHz): 0.1

Key Features

Electrical connection: Cable with connector
Mounting conditions: Flush
Output function: NPN
Rated switching distance (mm): 5

add_shopping_cart

Price Group

E1

List Price

€123.20

Item Total€123.20

Quantity

Contact Support
