BC8-Q10-RN6X2-0.85-V1131/S90 | TURCK - Your Global Automation Partner

Capacitive Sensor

BC8-Q10-RN6X2-0.85-V1131/S90

Order ID no. 2620114

homeHome
Loading...

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: UL
Cable length (m): 0.85
Electrical connection: Connector
Connector type: M8 x 1
Design: Rectangular

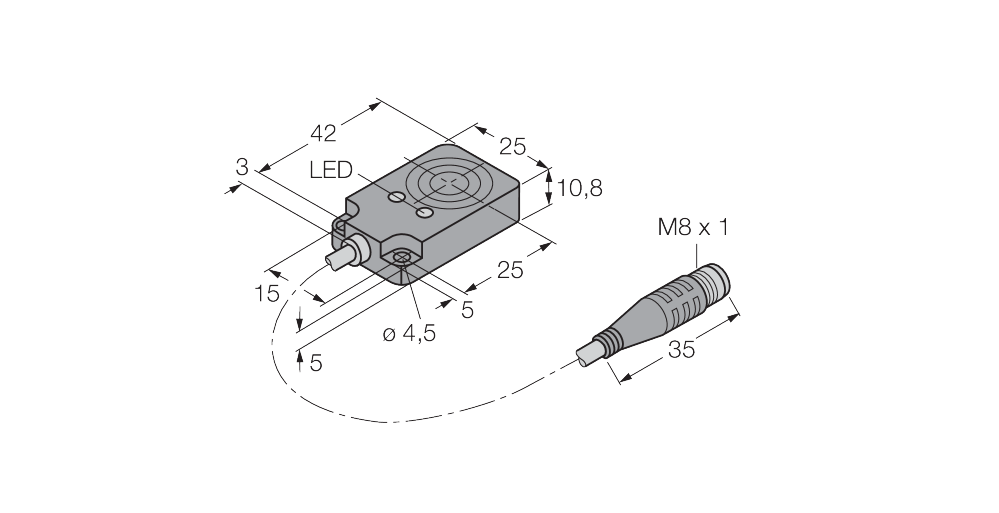

Dimensions (L x W x H): 42 mm x 25 mm x 10,8 mm
Housing material: Plastic
Housing quality: PBT-GF30-V0
Mounting conditions: Flush
Operating voltage: DC
Output function: NPN
Measuring principle: Capacitive
Protection class: IP67
Quality active face: PBT-GF30-V0
Rated switching distance (mm): 8
Switching element function: NC contact
Switching frequency (kHz): 0.1

Key Features

Electrical connection: Connector
Mounting conditions: Flush
Output function: NPN
Rated switching distance (mm): 8

In Stock
Price Group	E1
List Price	€132.10
