BC5-Q08-AP6X2-V1131/S250

BC5-Q08-AP6X2-V1131/S250

Thumbnail for BC5-Q08-AP6X2-V1131/S250

Thumbnail for BC5-Q08-AP6X2-V1131/S250

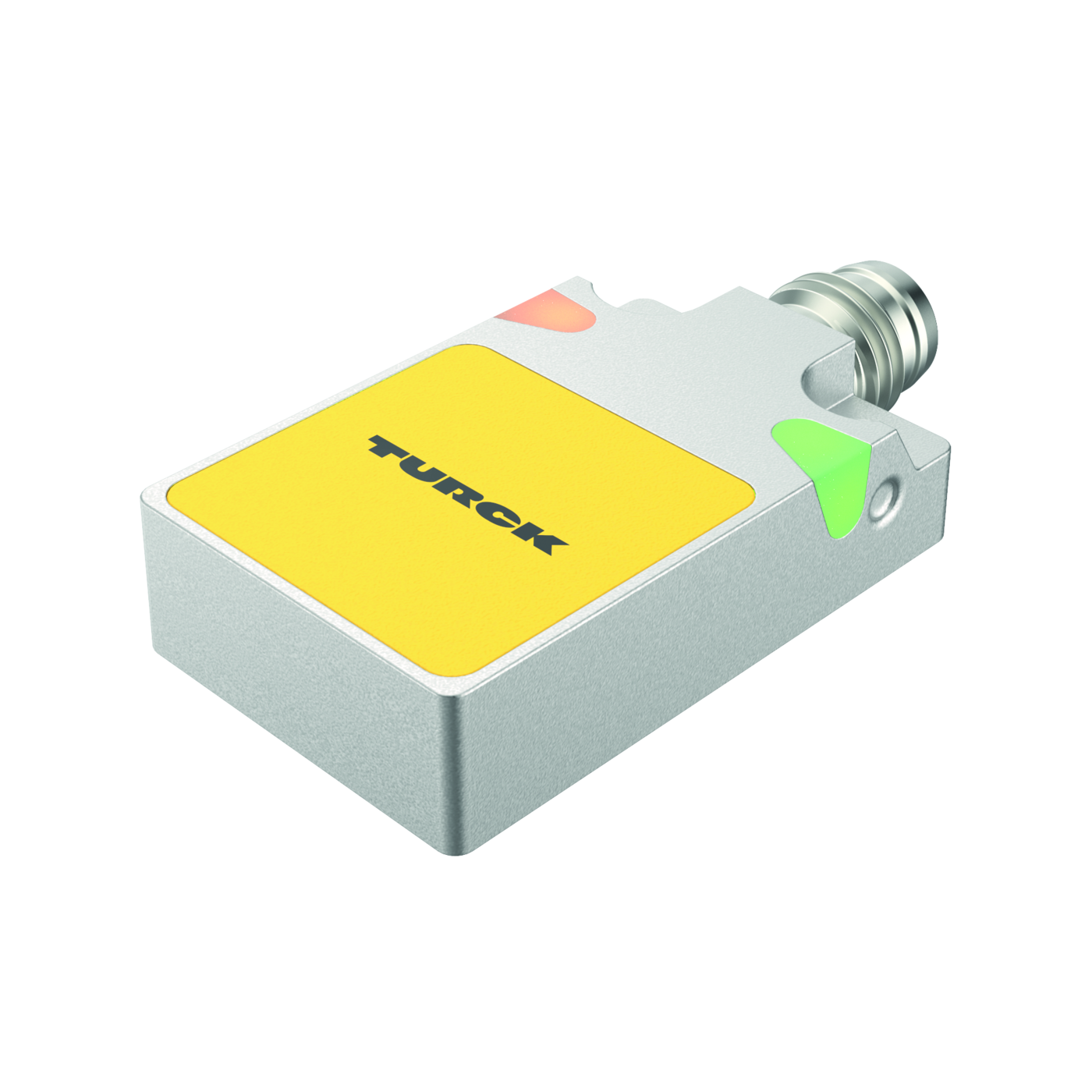

Capacitive Sensor

BC5-Q08-AP6X2-V1131/S250

Order ID no. 26210

In Stock
Price Group	E1
List Price	€104.50

Item Total€104.50

Quantity

Contact Support

homeHome
Loading...

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: UL
Electrical connection: Connector
Connector type: Ø 8 mm
Design: Rectangular
Dimensions (L x W x H): 32 mm
Housing material: Metal
Housing quality: Zamak
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Measuring principle: Capacitive
Protection class: IP68
Quality active face: PP
Rated switching distance (mm): 5
Switching element function: NO contact
Switching frequency (kHz): 0.1

Key Features

Electrical connection: Connector
Mounting conditions: Flush
Output function: PNP
Rated switching distance (mm): 5
