REI-04QA0C-4A2048-H1181 | TURCK - Your Global Automation Partner

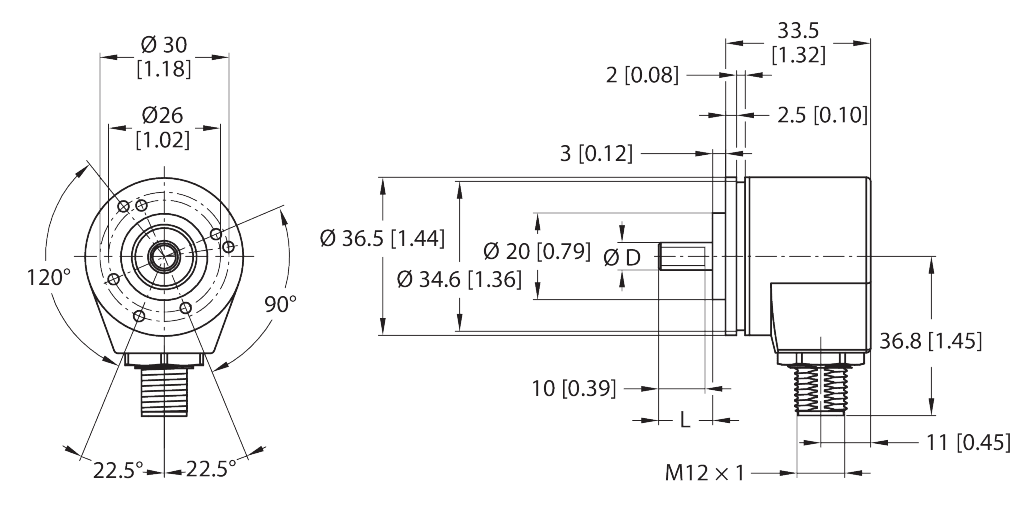

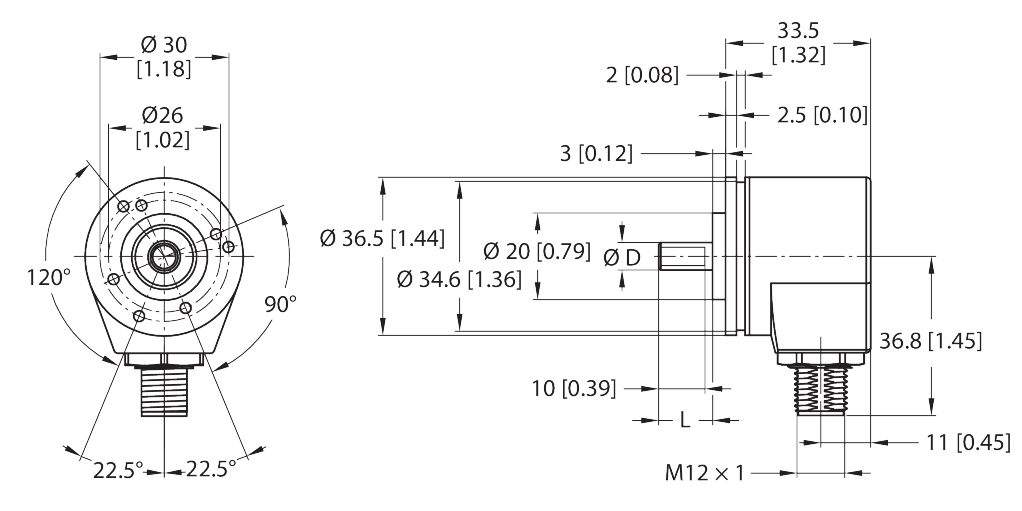

Incremental Encoder
REI-04QA0C-4A2048-H1181
Order ID no. 100011159
home
Home
Loading...
Technical Data
Downloads
Special features
Compact
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-20
Electrical connection
Connector
Connector type
M12 x 1
Design
Solid shaft
Encoder line
Industrial-Line
Technology
Optical
Housing material
Aluminum chromated
Output function
RS422
Output type
Incremental
Measuring principle
Optical
Protection class
IP65
Flange diameter (mm)
36.5
Flange type
Clamping flange
Protection class shaft
IP50
Resolution incremental (ppr)
2048
Shaft diameter D (mm)
6.35 mm
Shaft Type
Solid shaft
Key Features
Output type
Incremental
Flange diameter (mm)
36.5
Shaft diameter D (mm)
6.35 mm
Shaft Type
Solid shaft
In Stock
Price Group
F3
List Price
€241.90
