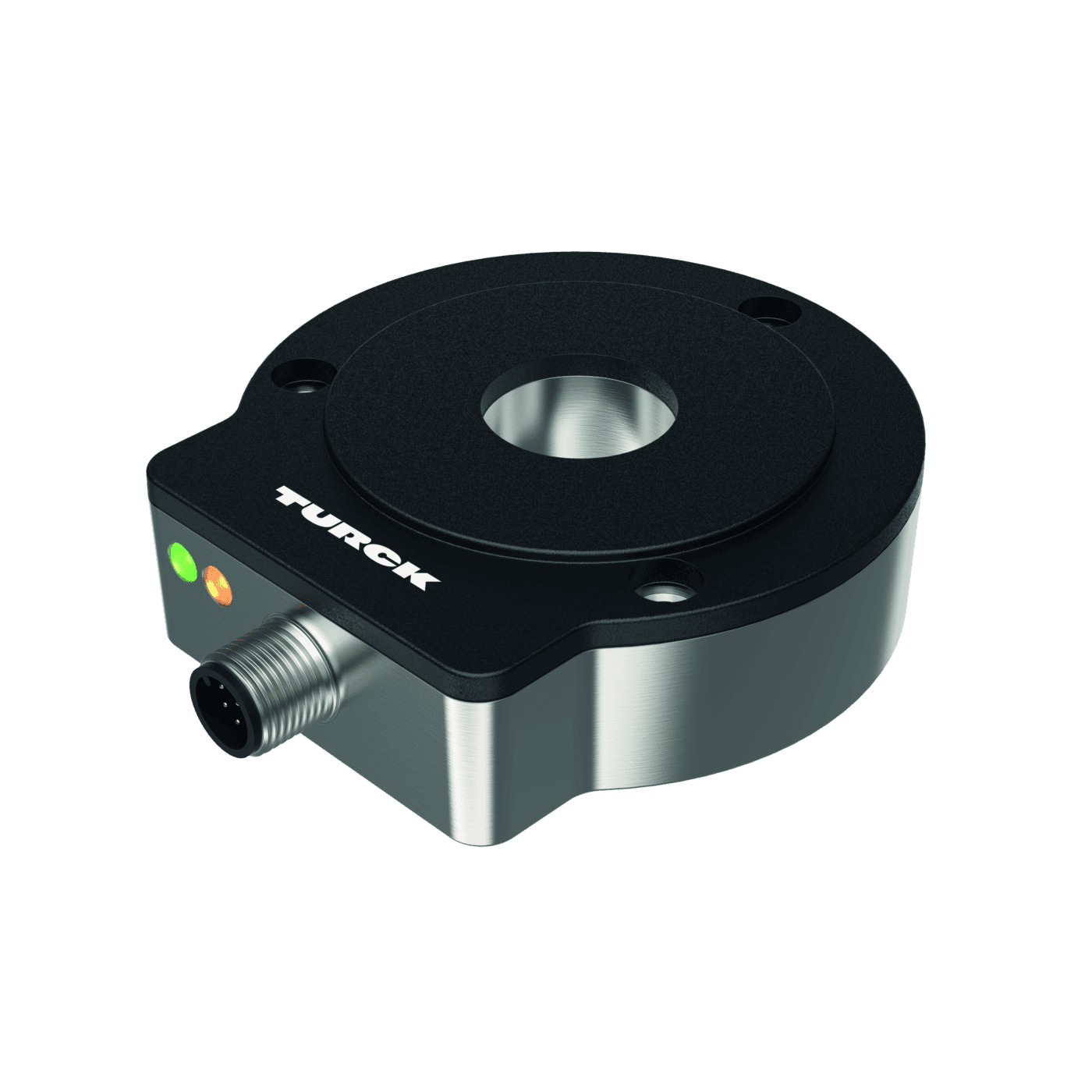

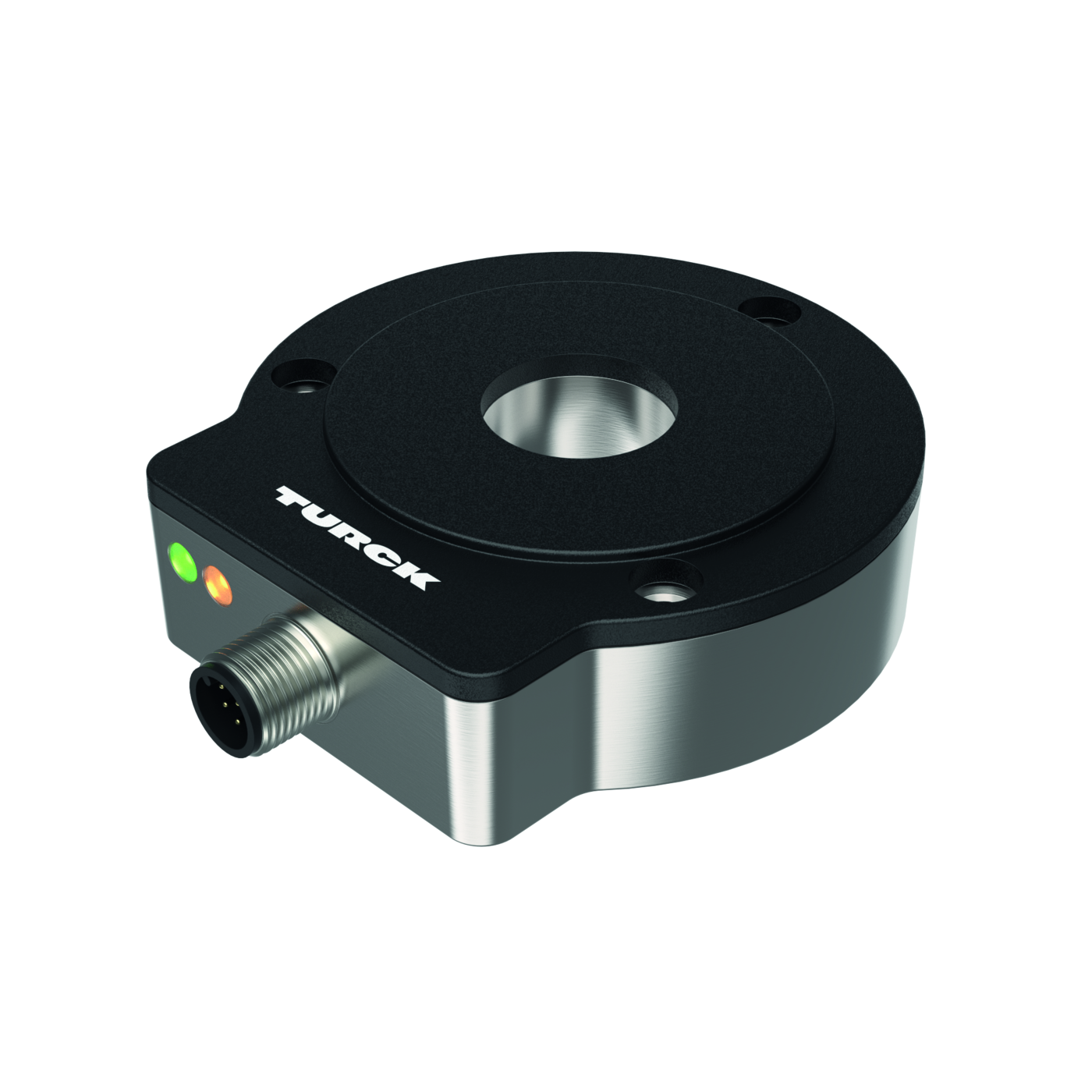

Contactless Encoder with Stainless Steel Housing

RI360P0-EQR24M0-INCRX2-H1181

Order ID no. 1590912

Item Total€429.60

Quantity

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -25
Electrical connection: Connector
Connector type: M12 x 1

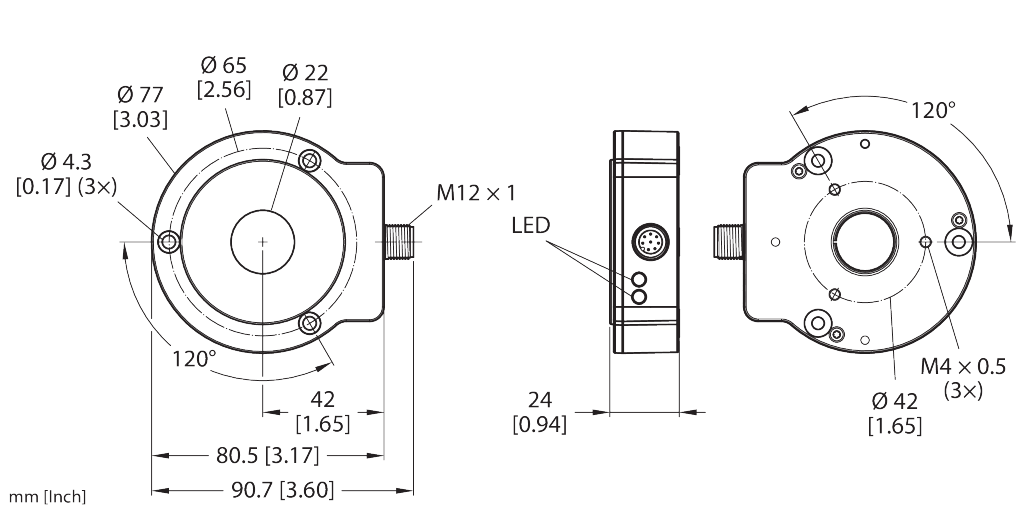

Dimensions (L x W x H): 81 mm x 78 mm x 24 mm
Encoder line: Premium-Line
Technology: Contactless
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/PA12-GF30
Operating voltage: DC
Output function: Push-Pull/HTL
Output type: Incremental
Measuring principle: Inductive
Protection class: IP68, IP69K
Flange type: Flange without mounting element
Resolution incremental (ppr): 1024
Shaft diameter D (mm): 6 mm, 6.35 mm, 9.525 mm, 10 mm, 12 mm, 12.7 mm, 14 mm, 15.875 mm, 19.05 mm, 20 mm
Shaft Type: Hollow shaft

Output type: Incremental
Shaft diameter D (mm): 6 mm, 6.35 mm, 9.525 mm, 10 mm, 12 mm, 12.7 mm, 14 mm, 15.875 mm, 19.05 mm, 20 mm
Shaft Type: Hollow shaft
