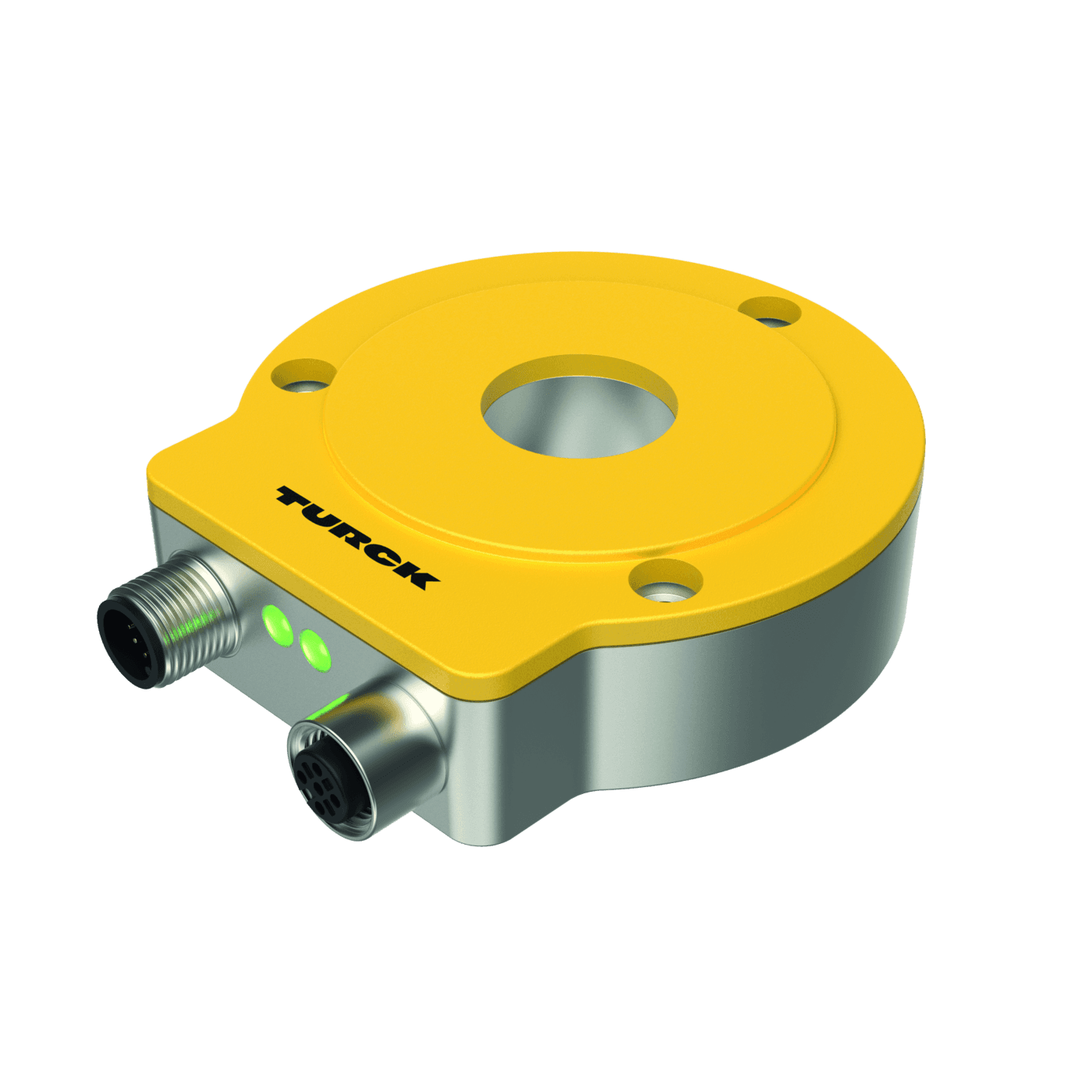

Contactless Encoder

RI360P0-QR24M0-CNX4-2H1150

Order ID no. 1590914

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -25
Communication protocol: CANopen
Electrical connection: Connector
Connector type: M12 x 1

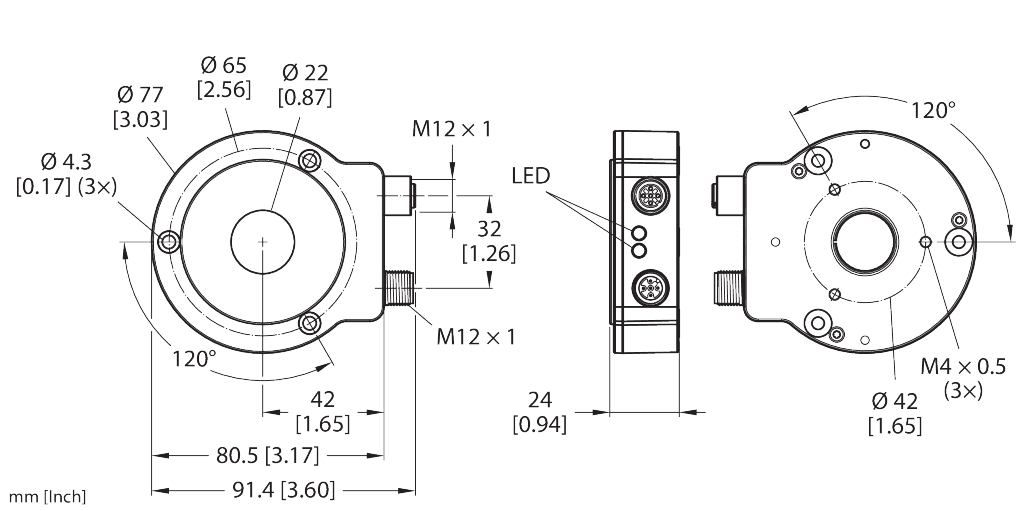

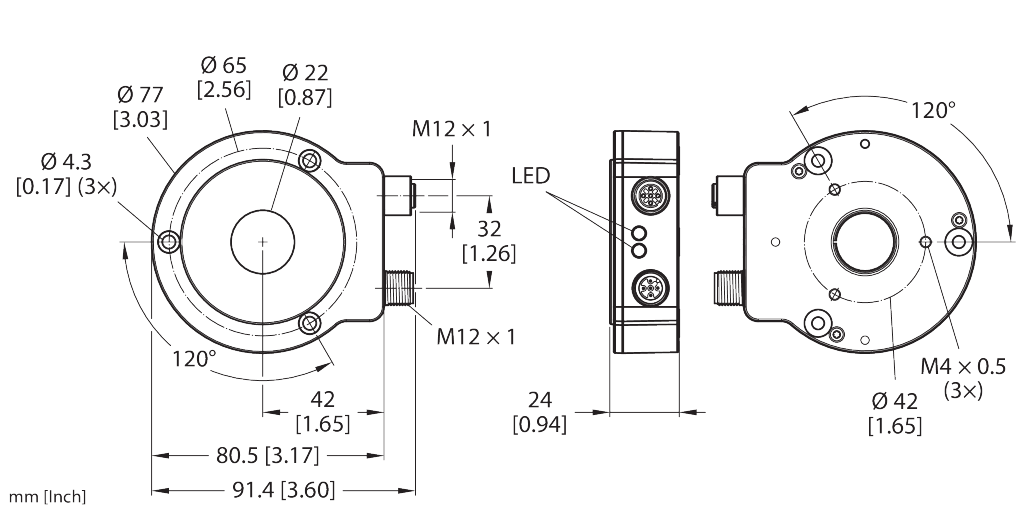

Dimensions (L x W x H): 81 mm x 78 mm x 24 mm
Encoder line: Premium-Line
Technology: Contactless
Housing material: Metal/plastic
Housing quality: ZnAlCu1/PBT-GF30-V0
Operating voltage: DC
Output type: Absolute singleturn
Measuring principle: Inductive
Protection class: IP68, IP69K
Flange type: Flange without mounting element
Shaft diameter D (mm): 6 mm, 6.35 mm, 9.525 mm, 10 mm, 12 mm, 12.7 mm, 14 mm, 15.875 mm, 19.05 mm, 20 mm
Shaft Type: Hollow shaft

Output type: Absolute singleturn
Shaft diameter D (mm): 6 mm, 6.35 mm, 9.525 mm, 10 mm, 12 mm, 12.7 mm, 14 mm, 15.875 mm, 19.05 mm, 20 mm
Shaft Type: Hollow shaft
