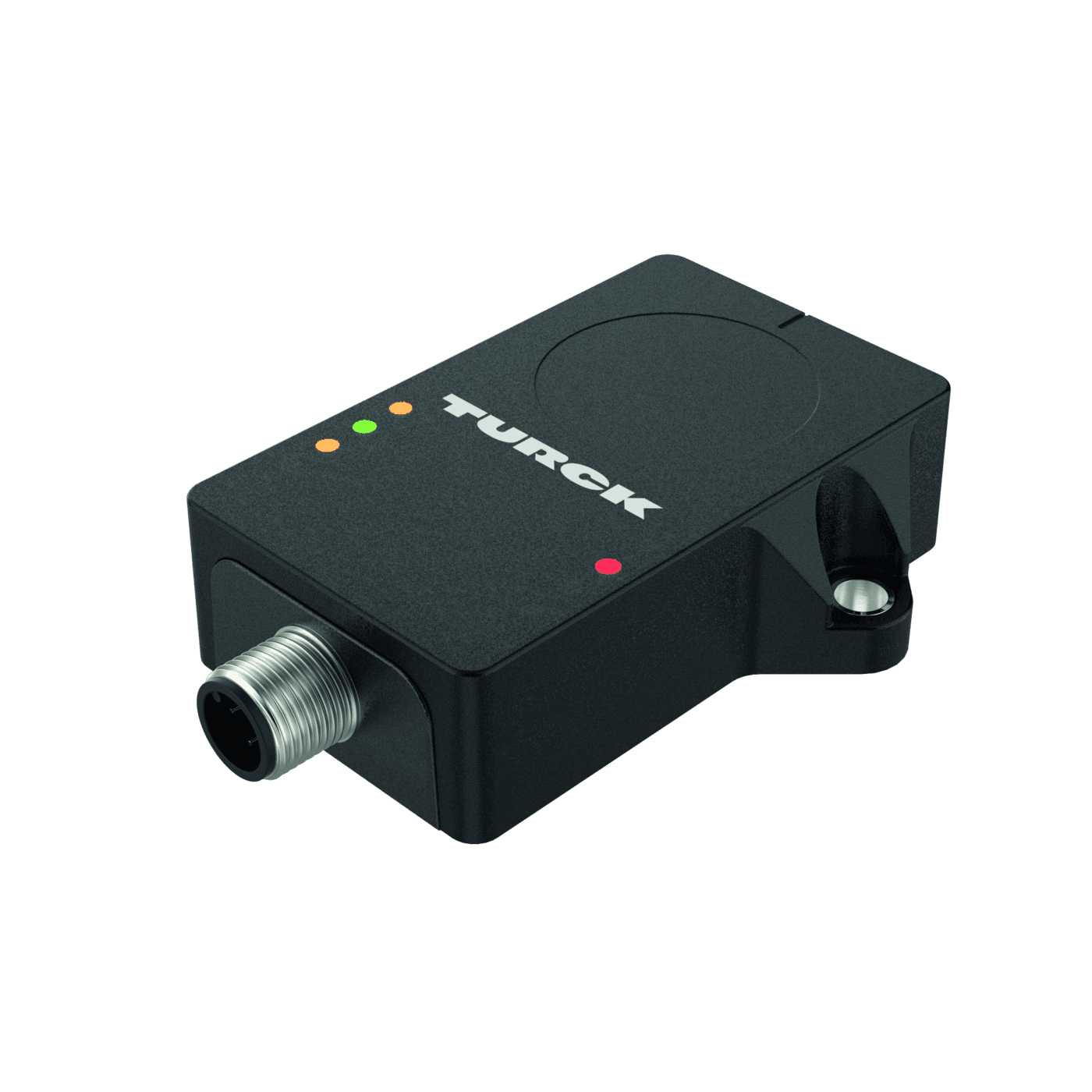

Dynamic Inclinometer CANopen
B1NF360V-QR20-CNX4-H1150
Order ID no. 100046442
In Stock
Price Group
H1
List Price
345,00 €
home
Turck-Shop
Products
Sensors
Inclinometers
B1NF360V-QR20-CNX4-H1150
Technical Data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-40
Approvals
E1 type approval
Communication protocol
CANopen
Connector type
M12 x 1
Design
Rectangular

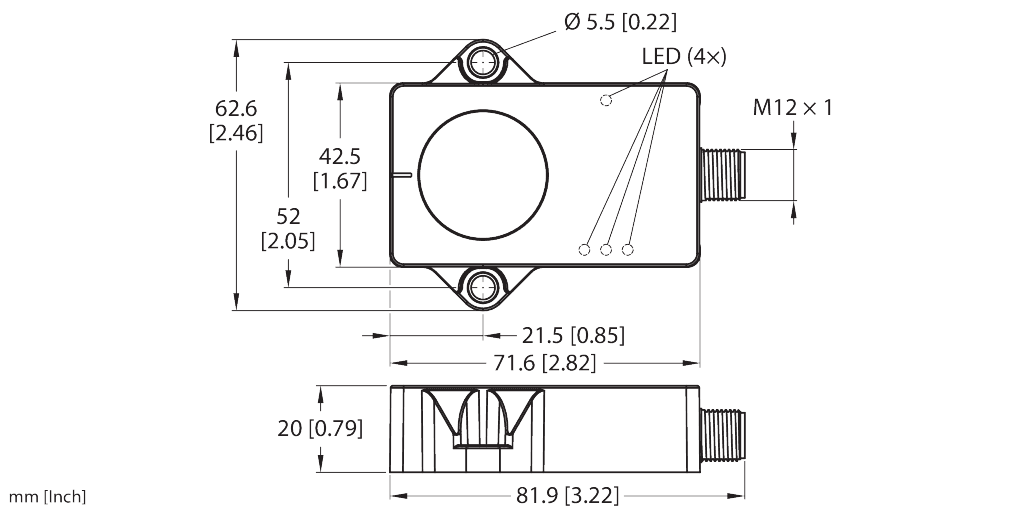

Dimensions (L x W x H)
71,6 mm x 62,6 mm x 20 mm
Electrical connection
Connector
Housing material
Plastic
Housing quality
Ultem
Measuring principle
Combination of gyroscopes and accelerometers
Number of measuring axes
1
Protection class
IP68, IP69K
Special features
for vehicle electrical systems, E1 type approval
Key Features
Communication protocol
CANopen
Number of measuring axes
1
